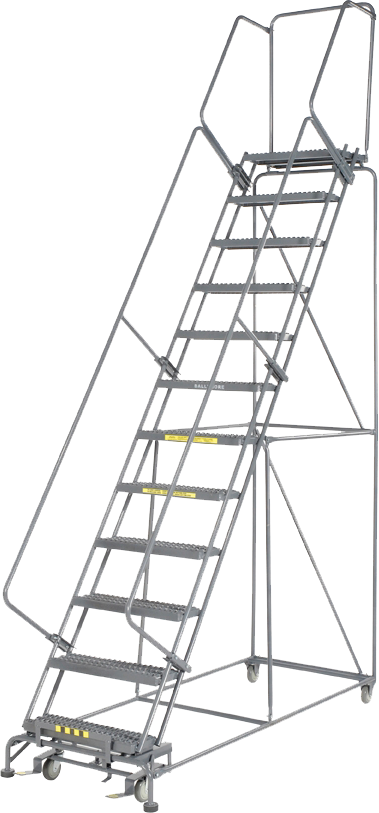

Ballymore manufacturer image listed for 123214G. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.
| Model / reference | STEPS INCLUDING TOP STEP | HEIGHT INCHES / TOP STEP | HEIGHT INCHES / OVER ALL | BASE W” x L” / OVER ALL | WGT Lbs. / OVER ALL |
|---|---|---|---|---|---|
| 052414 | 5 STEP | 50” | 83” | 24 x 43 | 91 |
| 062414 | 6 STEP | 60” | 93” | 24 x 49 | 100 |
| 072414 | 7 STEP | 70” | 103” | 24 x 55 | 109 |
| 082414 | 8 STEP | 80” | 113” | 24 x 61 | 127 |
| 053214 | 5 STEP | 50” | 83” | 32 x 43 | 110 |
| 063214 | 6 STEP | 60” | 93” | 32 x 49 | 122 |
| 073214 | 7 STEP | 70” | 103” | 32 x 55 | 143 |
| 083214 | 8 STEP | 80” | 113” | 32 x 61 | 160 |
| 093214 | 9 STEP | 90” | 123” | 32 x 68 | 175 |
| 103214 | 10 STEP | 100” | 133” | 32 x 74 | 193 |
| 113214 | 11 STEP | 110” | 143” | 32 x 80 | 205 |
| 123214 | 12 STEP | 120” | 153” | 32 x 87 | 220 |
| 134014 | 13 STEP* | 130” | 175” | 40 x 94 | 250 |
| 144014 | 14 STEP* | 140” | 185” | 40 x 100 | 280 |
| 154014 | 15 STEP* | 150” | 195” | 40 x 106 | 310 |
| Documented model configurations | 15 |
|---|---|
| Catalog feature / option | 450 LB. CAPACITY |
| Catalog feature / option | Specify tread type when ordering |
| Catalog feature / option | 30” high handrails M-2000 SERIES |
Source: 2026 ladder and access catalog, PDF page 13. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Rolling Safety Ladders — M-2000 Series is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: 450 LB. CAPACITY; Easy to use foot-pedal activated lockstep; High quality casters with bearing and dust cover; 14” deep top step; Ships unassembled for freight savings; Available fully assembled, specify (SU) set-up; Specify tread type when ordering; Rigid 1” OD tubing; 30” high handrails M-2000 SERIES.
Model and option notes: 24” WIDE STEP WITH 32” - 40” WIDE BASE.
Reference: 2026 ladder and access catalog, PDF page 13. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
SKU 01-03-0001

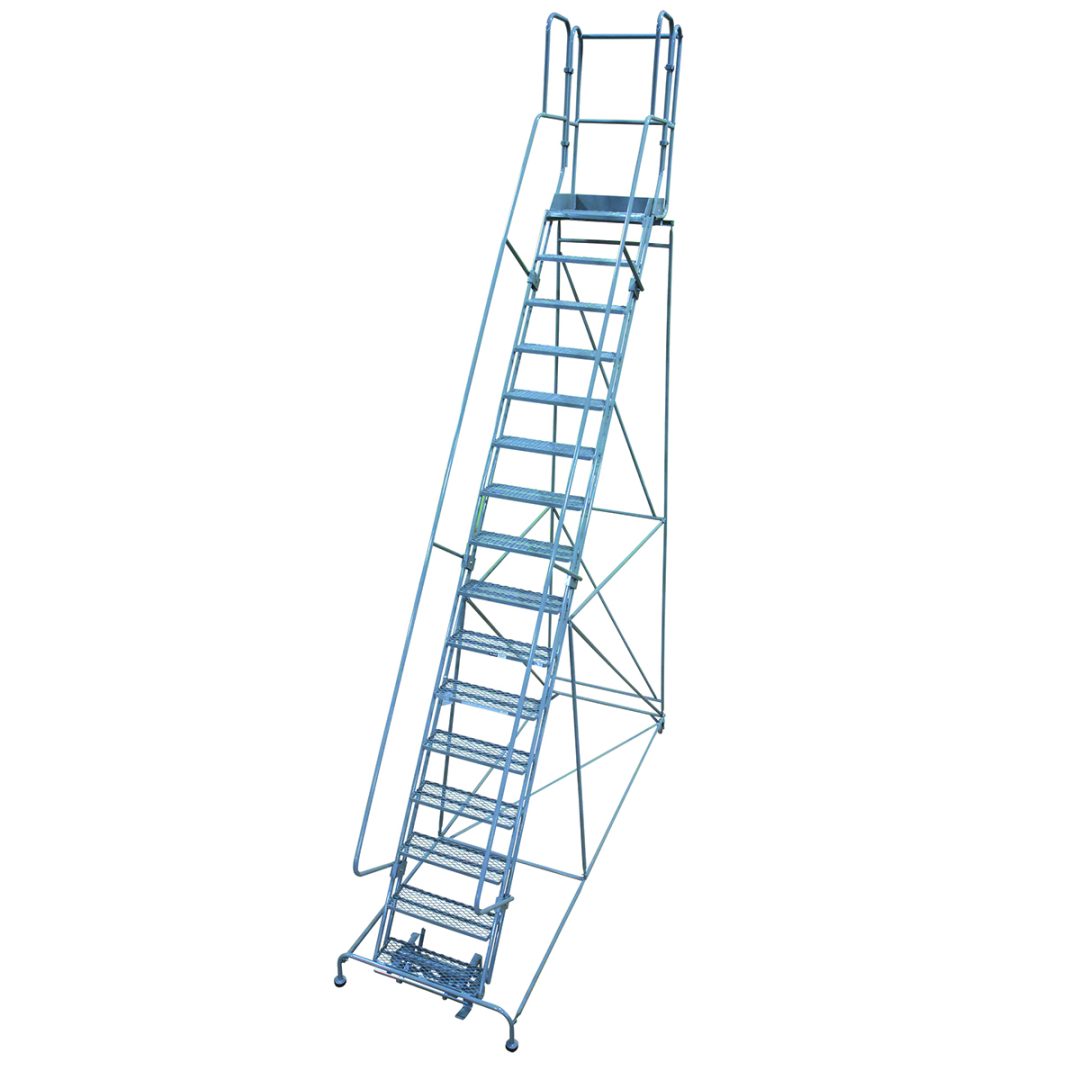

Cotterman Series 1000 Ladder With 59 Degree Slope. Top Step Height (Inches): 100, 110, 12, 20, 30, 40, 50, 60, 70, 80, 90; Top Step Width (Inches): 18…
