| MODEL NUMBER | OVERALL BOOM LENGTH | OVERALL HEIGHT | USABLE HEIGHT | BOOM REACH | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| JIB-P-10-6-6 | 72" | 84 11/16" | 71 13/16" | 67¾" | 1,000 lb. | 603 |
| JIB-P-10-6-8 | 72" | 108 11/16" | 95 13/16" | 67¾" | 1,000 lb. | 701 |
| JIB-P-10-6-10 | 72" | 132 11/16" | 119 13/16" | 67¾" | 1,000 lb. | 731 |
| JIB-P-10-8-6 | 96" | 84 11/16" | 71 13/16" | 91¾" | 1,000 lb. | 606 |
| JIB-P-10-8-8 | 96" | 108 11/16" | 95 13/16" | 91¾" | 1,000 lb. | 683 |
| JIB-P-10-8-10 | 96" | 132 11/16" | 119 13/16" | 91¾" | 1,000 lb. | 773 |
| JIB-P-10-10-6 | 120" | 84 11/16" | 71 13/16" | 115¾" | 1,000 lb. | 710 |
| JIB-P-10-10-8 | 120" | 108 11/16" | 95 13/16" | 115¾" | 1,000 lb. | 790 |
| JIB-P-10-10-10 | 120" | 132 11/16" | 119 13/16" | 115¾" | 1,000 lb. | 805 |
| JIB-P-B | EXTRA BASE SOCKET, 34½"H WITH 17" x 17" BASE | 145 |
| Overall Boom Length | 72"; 96"; 120" |
|---|---|
| Overall Height | 84 11/16"; 108 11/16"; 132 11/16" |
| Usable Height | 71 13/16"; 95 13/16"; 119 13/16"; EXTRA BASE SOCKET, 34½"H WITH 17" x 17" BASE |
| Boom Reach | 67¾"; 91¾"; 115¾" |
| Uniform Capacity | 1,000 lb. |
Source: 2018 catalog, page 209. Confirm current specifications and options for the selected model.

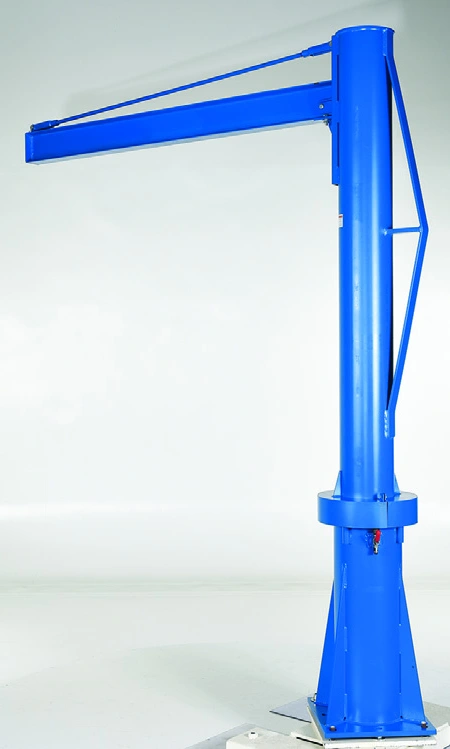

PRODUCT INFORMATION
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
The catalog lists JIB-P-10-6-6 through JIB-P-B within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Overall Boom Length: 72"; 96"; 120"; Overall Height: 84 11/16"; 108 11/16"; 132 11/16". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 209. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 10 model references for this family. The first listed model is JIB-P-10-6-6. Compare the model rows and confirm the required configuration when quoting.
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
