SKU UL34-22
Presto UL34 U-Lift Roll-In Lift Table
UL34-22 uses a U-shaped deck to accept a hand pallet truck for pallet loading without a conventional full-width deck.
- Manufacturer
- Presto
- Catalog range
- UL34 U-Lift Roll-In Lift Table
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | Std. Base / Platform | Max Platform | Standard Motor | Std. Voltage Phase/Hz | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| LP34-22 | 2200 lbs | 34-3/4" | 3-1/4" | 24" x 60" | 48" x 96" | 1 HP | 115/1/60 | 600 lbs |
| LP34-22-TNT | 1950 lbs | 35-5/8" | 4-1/8" | 48" x 66" | 48" x 96" | 1 HP | 115/1/60 | 750 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | LP34 Low-Profile Lift Tables |
| Documented configurations | 2 |
| Max Platform | 48" x 96" |
| Standard Motor | 1 HP |
| Std. Voltage Phase/Hz | 115/1/60 |
Source: Presto General Catalog 2026, PDF page 15. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview

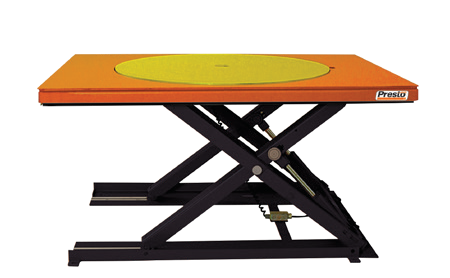

LP34 low-profile tables provide four-side access, with standard and recessed-turntable platforms for different loading requirements.
LP34-22 is rated at 2200 lb; LP34-22-TNT at 1950 lb. Compare each deck and collapsed-height row, then specify any shallow loading ramp needed for hand-pallet-truck access.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 15. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a LP34 Low-Profile Lift Tables configuration?
LP34-22 is rated at 2200 lb; LP34-22-TNT at 1950 lb. Compare each deck and collapsed-height row, then specify any shallow loading ramp needed for hand-pallet-truck access.
What should I provide for a LP34 Low-Profile Lift Tables quote?
For LP34 Low-Profile Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
