Equipment details
Presto LP34 Low-Profile Lift Tables
LP34 low-profile tables provide four-side access, with standard and recessed-turntable platforms for different loading requirements.
- Manufacturer
- Presto
- Catalog range
- LP34 Low-Profile Lift Tables
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | Platform Size | Dimensions W x L | Lifting Speed | Shipping Weight |
|---|---|---|---|---|---|---|---|
| XZ44-20 | 2000 lbs | 35-3/8" | 3/8" | 44 x 48" | 61-1/4 x 59" | 40 sec | 1300 lbs |
| XZ44-40 | 4000 lbs | 35-3/8" | 3/8" | 44 x 48" | 61-1/4 x 59" | 44 sec | 1325 lbs |
| XZ44-60 | 6000 lbs | 34-1/2" | 1/2" | 44 x 48" | 65-1/4 x 59" | 54 sec | 1750 lbs |
| XZ50-20 | 2000 lbs | 35-3/8" | 3/8" | 50 x 48" | 67-1/4 x 59" | 40 sec | 1400 lbs |
| XZ50-40 | 4000 lbs | 35-3/8" | 3/8" | 50 x 48" | 67-1/4 x 59" | 44 sec | 1425 lbs |
| XZ50-60 | 6000 lbs | 34-1/2" | 1/2" | 50 x 48" | 65-1/4 x 59" | 54 sec | 1850 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | XZ Floor-Level Hydraulic Lift Tables |
| Documented configurations | 6 |
Source: Presto General Catalog 2026, PDF page 16. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview

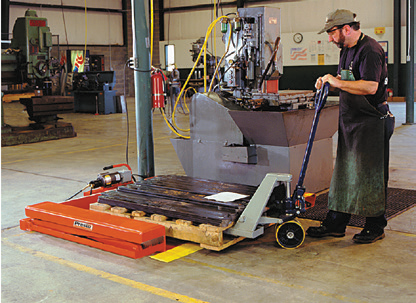

XZ tables lower their deck close to the floor for pallet-truck loading, with two platform-width groups and three capacity levels.
Compare XZ44 and XZ50 deck sizes, complete footprints and 2000, 4000 or 6000 lb ratings. Include space for the external hydraulic power unit and the actual pallet truck's loading route.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 16. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a XZ Floor-Level Hydraulic Lift Tables configuration?
Compare XZ44 and XZ50 deck sizes, complete footprints and 2000, 4000 or 6000 lb ratings. Include space for the external hydraulic power unit and the actual pallet truck's loading route.
What should I provide for a XZ Floor-Level Hydraulic Lift Tables quote?
For XZ Floor-Level Hydraulic Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
