Equipment details

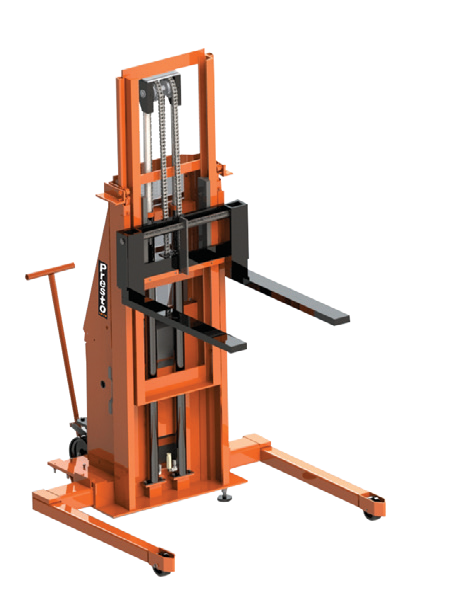

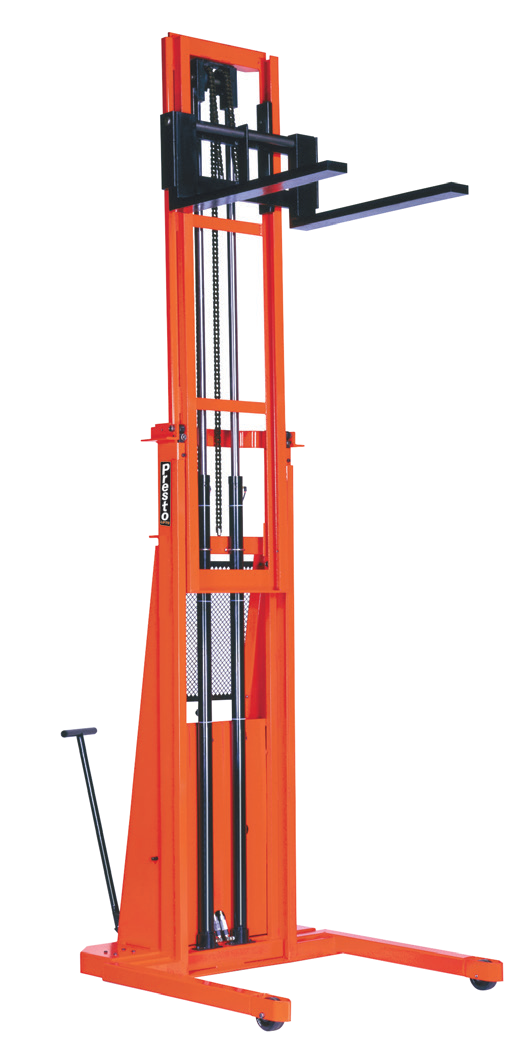

Presto PowerStak PPS2600 Straddle Stackers
PPS2600 straddle stackers combine powered travel and lifting with adjustable base legs and forged forks.
- Manufacturer
- Presto
- Catalog range
- PowerStak PPS2600 Straddle Stackers
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | Dimensions H x W x L | Base Legs I.D. / O.D. | Wheel Dia. Front/Rear | Shipping Weight |
|---|---|---|---|---|---|---|---|
| PS262 | 2000 lbs | 62" | 2-1/2" | 82 x 48 x 70" | 42" / 48" | 5" / 4" | 875 lbs |
| PS274 | 2000 lbs | 72" | 2-1/2" | 94 x 48 x 70" | 42" / 48" | 5" / 4" | 925 lbs |
| PS2762 | 2700 lbs | 60" | 2-1/2" | 84 x 48 x 70" | 42" / 48" | 5" / 4" | 1000 lbs |
| PS2774 | 2700 lbs | 72" | 2-1/2" | 96 x 48 x 70" | 42" / 48" | 5" / 4" | 1045 lbs |
| PS262-50 | 2000 lbs | 62" | 2-1/2" | 82 x 56 x 70" | 50" / 56" | 5" / 4" | 900 lbs |
| PS274-50 | 2000 lbs | 74" | 2-1/2" | 94 x 56 x 70" | 50" / 56" | 5" / 4" | 975 lbs |
| PS2762-50 | 2700 lbs | 60" | 2-1/2" | 84 x 56 x 70" | 50" / 56" | 5" / 4" | 1025 lbs |
| PS2774-50 | 2700 lbs | 72" | 2-1/2" | 96 x 56 x 70" | 50" / 56" | 5" / 4" | 1070 lbs |
| PSA262 | 2000 lbs | 62" | 2-1/2" | 82 x 41-56 x 72" | 35-50" / 41-56" | 5" / 5" | 1000 lbs |
| PSA274 | 2000 lbs | 74" | 2-1/2" | 94 x 41-56 x 72" | 35-50" / 41-56" | 5" / 5" | 1045 lbs |
| PSA2762 | 2700 lbs | 60" | 2-1/2" | 84 x 41-56 x 72" | 35-50" / 41-56" | 5" / 5" | 1145 lbs |
| PSA2774 | 2700 lbs | 72" | 2-1/2" | 96 x 41-56 x 72" | 35-50" / 41-56" | 5" / 5" | 1175 lbs |
| PST294 | 2000 lbs | 94" | 2-1/2" | 119/73 x 48 x 71" | 42-48" | 5" / 4" | 1000 lbs |
| PST2107 | 2000 lbs | 107" | 2-1/2" | 133/81 x 48 x 71" | 42-48" | 5" / 4" | 1050 lbs |
| PST2127 | 2000 lbs | 127" | 2-1/2" | 155/93 x 48 x 71" | 42-48" | 5" / 4" | 1100 lbs |
| PST2144 | 2000 lbs | 144" | 2-1/2" | 169/99 x 48 x 71" | 42-48" | 5" / 4" | 1150 lbs |
| PST2794 | 2700 lbs | 94" | 2-1/2" | 119/75 x 48 x 71" | 42-48" | 5" / 4" | 1190 lbs |
| PST27107 | 2700 lbs | 107" | 2-1/2" | 133/81 x 48 x 71" | 42-48" | 5" / 4" | 1240 lbs |
| PST27127 | 2700 lbs | 127" | 2-1/2" | 156/94 x 48 x 71" | 42-48" | 5" / 4" | 1290 lbs |
| PST294-50 | 2000 lbs | 94" | 2-1/2" | 119/73 x 56 x 71" | 50-56" | 5" / 4" | 1010 lbs |
| PST2107-50 | 2000 lbs | 107" | 2-1/2" | 133/81 x 56 x 71" | 50-56" | 5" / 4" | 1060 lbs |
| PST2127-50 | 2000 lbs | 127" | 2-1/2" | 155/93 x 56 x 71" | 50-56" | 5" / 4" | 1110 lbs |
| PST2144-50 | 2000 lbs | 144" | 2-1/2" | 169/99 x 56 x 71" | 50-56" | 5" / 4" | 1170 lbs |
| PST2794-50 | 2700 lbs | 94" | 2-1/2" | 119/75 x 56 x 71" | 50-56" | 5" / 4" | 1200 lbs |
| PST27107-50 | 2700 lbs | 107" | 2-1/2" | 133/81 x 56 x 71" | 50-56" | 5" / 4" | 1250 lbs |
| PST27127-50 | 2700 lbs | 127" | 2-1/2" | 156/94 x 56 x 71" | 50-56" | 5" / 4" | 1300 lbs |
| PSTA294 | 2000 lbs | 94" | 2-1/2" | 119/73 x 41-56 x 73" | 35-50" / 41-56" | 5" / 5" | 1150 lbs |
| PSTA2107 | 2000 lbs | 107" | 2-1/2" | 133/80 x 41-56 x 73" | 35-50" / 41-56" | 5" / 5" | 1200 lbs |
| PSTA2127 | 2000 lbs | 127" | 2-1/2" | 154/92 x 41-56 x 73" | 35-50" / 41-56" | 5" / 5" | 1250 lbs |
| PSTA2794 | 2700 lbs | 94" | 2-1/2" | 120/75 x 41-56 x 73" | 35-50" / 41-56" | 5" / 5" | 1400 lbs |
| PSTA27107 | 2700 lbs | 107" | 2-1/2" | 133/81 x 41-56 x 73" | 35-50" / 41-56" | 5" / 5" | 1450 lbs |
| PSTA27127 | 2700 lbs | 127" | 2-1/2" | 155/93 x 41-56 x 73" | 35-50" / 41-56" | 5" / 5" | 1500 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | PS-Series Battery Pallet Stackers |
| Documented configurations | 32 |
| Lowered Height | 2-1/2" |
Source: Presto General Catalog 2026, PDF page 10. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
PS-series stackers offer fixed, adjustable and telescoping-mast arrangements for rack loading, with multiple straddle widths.
Series labels distinguish 42 in, 50 in and adjustable bases. Ratings are at a 24 in load center. Units over 93 in overall height are described as shipping horizontally, which should be considered for unloading.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 10. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a PS-Series Battery Pallet Stackers configuration?
Series labels distinguish 42 in, 50 in and adjustable bases. Ratings are at a 24 in load center. Units over 93 in overall height are described as shipping horizontally, which should be considered for unloading.
What should I provide for a PS-Series Battery Pallet Stackers quote?
For PS-Series Battery Pallet Stackers, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
