Open an image to inspect its original detail.
| Model / reference | Catalog configuration | # of Steps | Overall Height | Platform W x L | Base W x D | Weight |
|---|---|---|---|---|---|---|
| KDSR106246-XR | Perforated | 6 | 106 | 24" x 30" | 35" x 70" | 280 |
| KDSR106242-XR | Grip Strut | 6 | 106 | 24" x 30" | 35" x 70" | 280 |
| KDSR107246-XR | Perforated | 7 | 116 | 24" x 30" | 35" x 77" | 300 |
| KDSR107242-XR | Grip Strut | 7 | 116 | 24" x 30" | 35" x 77" | 300 |
| KDSR108246-XR | Perforated | 8 | 126 | 24" x 30" | 35" x 84" | 325 |
| KDSR108242-XR | Grip Strut | 8 | 126 | 24" x 30" | 35" x 84" | 325 |
| KDSR109246-XR | Perforated | 9 | 136 | 24" x 30" | 35" x 89" | 361 |
| KDSR109242-XR | Grip Strut | 9 | 136 | 24" x 30" | 35" x 89" | 361 |
| KDSR110246-XR | Perforated | 10 | 146 | 24" x 30" | 35" x 96" | 350 |
| KDSR110242-XR | Grip Strut | 10 | 146 | 24" x 30" | 35" x 96" | 350 |
| KDSR111246-XR | Perforated | 11 | 156 | 24" x 30" | 35" x 103" | 401 |
| KDSR111242-XR | Grip Strut | 11 | 156 | 24" x 30" | 35" x 103" | 401 |
| KDSR112246-XR | Perforated | 12 | 166 | 24" x 30" | 35" x 110" | 415 |
| KDSR112242-XR | Grip Strut | 12 | 166 | 24" x 30" | 35" x 110" | 415 |
| KDSR113246-XR | Perforated | 13 | 176 | 24" x 30" | 40" x 116" | 552 |
| KDSR113242-XR | Grip Strut | 13 | 176 | 24" x 30" | 40" x 116" | 552 |
| KDSR114246-XR | Perforated | 14 | 186 | 24" x 30" | 40" x 123" | 472 |
| KDSR114242-XR | Grip Strut | 14 | 186 | 24" x 30" | 40" x 123" | 472 |
| KDSR115246-XR | Perforated | 15 | 196 | 24" x 30" | 40" x 130" | 575 |
| KDSR115242-XR | Grip Strut | 15 | 196 | 24" x 30" | 40" x 130" | 575 |
| Documented model configurations | 20 |
|---|---|
| Platform W x L | 24" x 30" |
| Catalog feature / option | Large 30” deep top platform |
| Catalog feature / option | 450 lb. Rated Capacity |
| Catalog feature / option | Perforated or Grip Strut tread |
Source: 2026 ladder and access catalog, PDF page 37. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

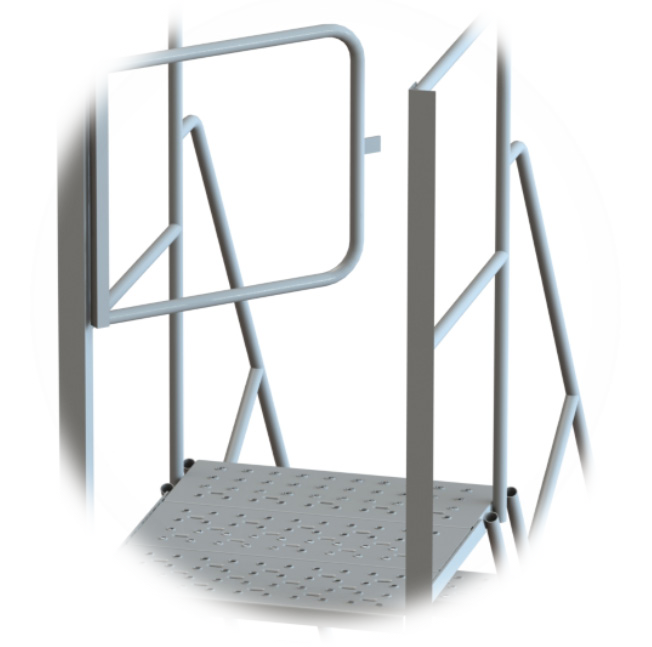

Rear-Exit Rolling Access Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Large 30” deep top platform; 450 lb. Rated Capacity; Perforated or Grip Strut tread; Ships unassembled; 1” tubular steelcconstruction; Powder-coat gray finish; Step lock standard on all models.
Model and option notes: Specify Tread Type when ordering NOTE: Models Listed are for Perforated Treads.
Reference: 2026 ladder and access catalog, PDF page 37. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
