| Model / reference | # Of Steps | Top Step Height | Vertical Clearance | Step Width | Step Depth | Overall Height | Overall Width | Span Lenth | Walkway Width | Combine up to a total of 120” uninhibited span clearance length. Longer spans require Support Legs (column 1) | Combine up to a total of 120” uninhibited span clearance length. Longer spans require Support Legs (column 2) | Combine up to a total of 120” uninhibited span clearance length. Longer spans require Support Legs (column 3) | Combine up to a total of 120” uninhibited span clearance length. Longer spans require Support Legs (column 4) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| URTL502 | 1 | 20” | 17.5” | 36” | 9.5” | 62” | 46.25” | — | — | — | — | — | — |
| URTL503 | 2 | 30” | 27.5” | 36” | 9.5” | 72” | 52.75” | — | — | — | — | — | — |
| URTL504 | 3 | 40” | 37.5” | 36” | 9.5” | 82” | 52.75” | — | — | — | — | — | — |
| URTL505 | 4 | 50” | 47.5” | 36” | 9.5” | 92” | 52.75” | — | — | — | — | — | — |
| URTL506 | 5 | 60” | 57.5” | 36” | 9.5” | 102” | 52.75” | — | — | — | — | — | — |
| URTL902 — # Of Steps: -; Top Step Height: 20”; Vertical Clearance: 17.5” | - | 20” | 17.5” | 24” | 1.625” | 62” | 52.25” | — | — | — | — | — | — |
| URTL903 | - | 30” | 27.5” | 24” | 1.625” | 72” | 52.25” | — | — | — | — | — | — |
| URTL904 | - | 40” | 37.5” | 24” | 1.625” | 82” | 52.25” | — | — | — | — | — | — |
| URTL905 | - | 50” | 47.5” | 24” | 1.625” | 92” | 52.25” | — | — | — | — | — | — |
| URTL906 | - | 60” | 57.5” | 24” | 1.625” | 102” | 52.25” | — | — | — | — | — | — |
| URTSB36 | — | — | — | — | — | — | 42” | 40” | 38” | — | — | — | — |
| URTTP20 | — | — | — | — | — | — | 17.5” | 2 | 20” | 36” | 62” | 52.75” | 40” |
| URTTP30 | — | — | — | — | — | — | 27.5” | 3 | 30” | 36” | 72” | 52.75” | 40” |
| URTTP40 | — | — | — | — | — | — | 37.5” | 4 | 40” | 36” | 82” | 52.75” | 40” |
| URTTP50 | — | — | — | — | — | — | 47.5” | 5 | 50” | 36” | 92” | 52.75” | 40” |
| URTTP60 | — | — | — | — | — | — | 57.5” | 6 | 60” | 36” | 102” | 52.75” | 40” |
| URTL902 — Span Lenth: -; Walkway Width: 20”; Overall Width: 17.5” | — | — | — | — | — | — | 17.5” | - | 20” | 24” | 1.625” | 62” | 52.25” |
| URTRK1 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| URTSL20 | — | — | — | — | — | — | — | 2 | — | — | — | — | — |
| URTSL30 | — | — | — | — | — | — | — | 3 | — | — | — | — | — |
| URTSL40 | — | — | — | — | — | — | — | 4 | — | — | — | — | — |
| URTSL50 | — | — | — | — | — | — | — | 5 | — | — | — | — | — |
| URTSL60 | — | — | — | — | — | — | — | 6 | — | — | — | — | — |
| Documented model configurations | 23 |
|---|---|
| Catalog feature / option | 500 lb. rated capacity |
| Catalog feature / option | Clearance height is 2.5” less than platform height |
| Catalog feature / option | Serrated tread surface |
| Catalog feature / option | 42” guardrail height |
Source: 2026 ladder and access catalog, PDF page 45. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

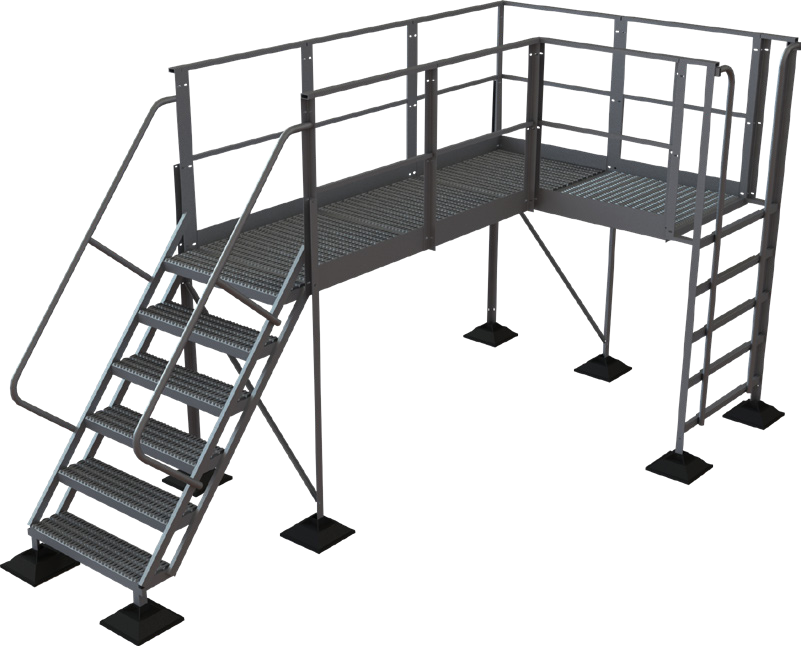

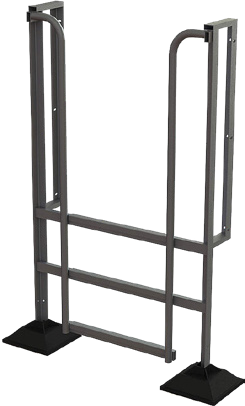

Rooftop Maintenance Access Platforms — URTL505 is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: 500 lb. rated capacity; Aluminum, 1”x2“ rectangular tube construction; Clearance height is 2.5” less than platform height; 36” wide steps and bridge spans; Serrated tread surface; Non-Penetrating Caddy feet - distributes weight evenly to protect roof surface; 42” guardrail height; 40” long bridge span that can be combined to create up to 120” uninhibited clearance length.
Model and option notes: 90° Incline; TURN PLATFORM; MODEL #; For Step Sizes; Platform Height; Vertical Clearance; Platform Width; Overall Height; Overall Width; Platform Length; GUARDRAIL ENCLOSURE; MODEL #; Kit includes guardrail, mid-rail, toeboard and hardware to close any walkway opening. Must be paired with a Leg Kit.; LEG KIT; MODEL #; For Step Sizes; Use a Leg Kit when overall bridge length must be greater than 120”. Pick based on number of steps and place between Bridge Spans so that no span exceeds 120” between Ladders, Turn Platforms, or Leg Kits..
Reference: 2026 ladder and access catalog, PDF page 45. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
