SKU STPC-CD
Stand Alone Powered Carousels
Stand Alone Powered Carousels: 2 catalog model references. R.P.M.: 3-12; 8; Height: 24"; 13½".
- R.P.M.
- 3-12; 8
- Height
- 24"; 13½"
Open an image to inspect its original detail.
Specifications & options

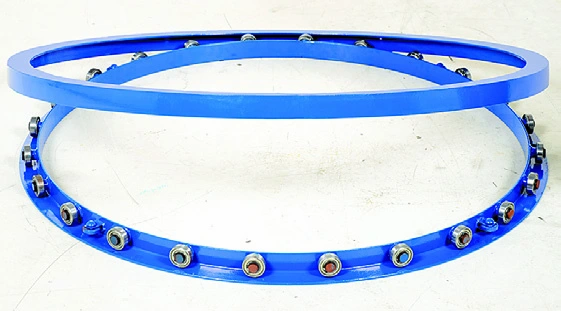

| MODEL NUMBER | OUTER DIAMETER | UNIFORM CAPACITY (LB.) | OVERALL HEIGHT | SHIPS VIA | WEIGHT (POUND) |
|---|---|---|---|---|---|
| CA-18-2 | 18" | 2,000 | 2" | UPS | 21 |
| CA-24-2 | 24" | 2,000 | 2" | UPS | 28 |
| CA-24-4 | 24" | 4,000 | 2" | UPS | 30 |
| CA-30-2 | 30" | 2,000 | 2" | UPS | 34 |
| CA-30-4 | 30" | 4,000 | 2" | UPS | 36 |
| CA-36-2 | 36" | 2,000 | 2" | UPS | 41 |
| CA-36-4 | 36" | 4,000 | 2" | UPS | 45 |
| CA-40-2 | 40" | 2,000 | 2" | UPS | 47 |
| CA-40-4 | 40" | 4,000 | 2" | UPS | 49 |
| CA-40-6 | 40" | 6,000 | 2" | UPS | 51 |
| CA-48-2 | 48" | 2,000 | 2" | TRUCK | 71 |
| CA-48-4 | 48" | 4,000 | 2" | TRUCK | 86 |
| CA-48-6 | 48" | 6,000 | 2" | TRUCK | 97 |
| CA-60-2 | 60" | 2,000 | 2" | TRUCK | 110 |
| CA-60-4 | 60" | 4,000 | 2" | TRUCK | 116 |
| CA-60-6 | 60" | 6,000 | 2" | TRUCK | 128 |
| CA-72-2 | 72" | 2,000 | 2" | TRUCK | 163 |
| CA-72-4 | 72" | 4,000 | 2" | TRUCK | 163 |
| CA-72-6 | 72" | 6,000 | 2" | TRUCK | 169 |
| CA-HBK | MANUAL BRAKE | (FIELD INSTALLED) | 3 | ||
| CA-HOD | HAND OPERATED LOCKING DETENT | (FACTORY INSTALLED) | 2 | ||
| CA-FTK | FOOT OPERATED LOCKING DETENT | (FACTORY INSTALLED) | 3 |
| MODEL NUMBER DIAMOND PLATE | STEEL TOP PLATES FOR CAROUSEL (1/4" THICK) | MODEL NUMBER SMOOTH PLATE | STYLE | OVERALL SIZE | USE WITH CAROUSEL DIA. | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| CA-TP-18-R-TP | CA-TP-18-R-SM | ROUND | 18" DIA. | 18" | 35 | |
| CA-TP-24-R-TP | CA-TP-24-R-SM | ROUND | 24" DIA. | 24" | 52 | |
| CA-TP-30-R-TP | CA-TP-30-R-SM | ROUND | 30" DIA. | 30" | 72 | |
| CA-TP-36-R-TP | CA-TP-36-R-SM | ROUND | 36" DIA. | 36" | 136 | |
| CA-TP-40-R-TP | CA-TP-40-R-SM | ROUND | 40" DIA. | 40" | 160 | |
| CA-TP-48-R-TP | CA-TP-48-R-SM | ROUND | 48" DIA. | 48" | 210 | |
| CA-TP-60-R-TP | CA-TP-60-R-SM | ROUND | 60" DIA. | 60" | 322 | |
| CA-TP-72-R-TP | CA-TP-72-R-SM | ROUND | 72" DIA. | 72" | 445 | |
| CA-TP-18-S-TP | CA-TP-18-S-SM | SQUARE | 18"W x 18"L | 18" | 35 | |
| CA-TP-24-S-TP | CA-TP-24-S-SM | SQUARE | 24"W x 24"L | 24" | 52 | |
| CA-TP-30-S-TP | CA-TP-30-S-SM | SQUARE | 30"W x 30"L | 30" | 72 | |
| CA-TP-36-S-TP | CA-TP-36-S-SM | SQUARE | 36"W x 36"L | 36" | 136 | |
| CA-TP-40-S-TP | CA-TP-40-S-SM | SQUARE | 40"W x 40"L | 40" | 160 | |
| CA-TP-48-S-TP | CA-TP-48-S-SM | SQUARE | 48"W x 48"L | 48" | 210 | |
| CA-TP-60-S-TP | CA-TP-60-S-SM | SQUARE | 60"W x 60"L | 60" | 322 | |
| CA-TP-72-S-TP | CA-TP-72-S-SM | SQUARE | 72"W x 72"L | 72" | 445 |
| MODEL NUMBER DIAMOND PLATE | STEEL TOP PLATES FOR CAROUSEL (1/4" THICK) | MODEL NUMBER SMOOTH PLATE | STYLE | OVERALL SIZE | USE WITH CAROUSEL DIA. | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| CA-TP-18-R-TP | CA-TP-18-R-SM | ROUND | 18" DIA. | 18" | 35 | |
| CA-TP-24-R-TP | CA-TP-24-R-SM | ROUND | 24" DIA. | 24" | 52 | |
| CA-TP-30-R-TP | CA-TP-30-R-SM | ROUND | 30" DIA. | 30" | 72 | |
| CA-TP-36-R-TP | CA-TP-36-R-SM | ROUND | 36" DIA. | 36" | 136 | |
| CA-TP-40-R-TP | CA-TP-40-R-SM | ROUND | 40" DIA. | 40" | 160 | |
| CA-TP-48-R-TP | CA-TP-48-R-SM | ROUND | 48" DIA. | 48" | 210 | |
| CA-TP-60-R-TP | CA-TP-60-R-SM | ROUND | 60" DIA. | 60" | 322 | |
| CA-TP-72-R-TP | CA-TP-72-R-SM | ROUND | 72" DIA. | 72" | 445 | |
| CA-TP-18-S-TP | CA-TP-18-S-SM | SQUARE | 18"W x 18"L | 18" | 35 | |
| CA-TP-24-S-TP | CA-TP-24-S-SM | SQUARE | 24"W x 24"L | 24" | 52 | |
| CA-TP-30-S-TP | CA-TP-30-S-SM | SQUARE | 30"W x 30"L | 30" | 72 | |
| CA-TP-36-S-TP | CA-TP-36-S-SM | SQUARE | 36"W x 36"L | 36" | 136 | |
| CA-TP-40-S-TP | CA-TP-40-S-SM | SQUARE | 40"W x 40"L | 40" | 160 | |
| CA-TP-48-S-TP | CA-TP-48-S-SM | SQUARE | 48"W x 48"L | 48" | 210 | |
| CA-TP-60-S-TP | CA-TP-60-S-SM | SQUARE | 60"W x 60"L | 60" | 322 | |
| CA-TP-72-S-TP | CA-TP-72-S-SM | SQUARE | 72"W x 72"L | 72" | 445 |

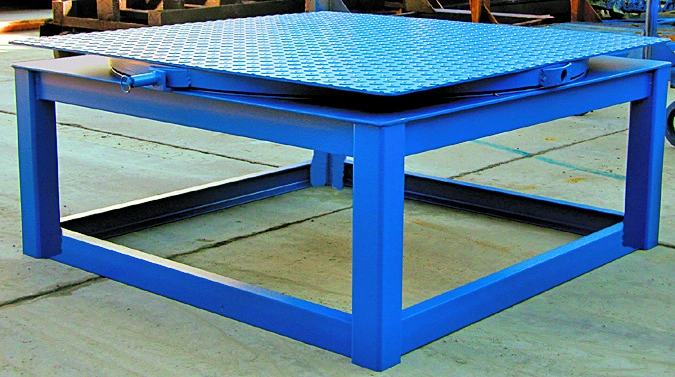

| MODEL NUMBER | (PRICING IS IN ADDITION TO THE COST OF THE CAROUSEL) | OVERALL SIZE (W x L) | CAPACITY UP TO (LB.) | WEIGHT (POUND) | MODEL NUMBER | (PRICING IS IN ADDITION TO THE COST OF THE CAROUSEL) | OVERALL SIZE (W x L) | CAPACITY UP TO (LB.) | WEIGHT (POUND) |
|---|---|---|---|---|---|---|---|---|---|
| CA-BASE-18-12 | 18"W x 18"L | 2,000 | 195 | CA-BASE-18-24 | 18"W x 18"L | 2,000 | 330 | ||
| CA-BASE-24-12 | 24"W x 24"L | 4,000 | 245 | CA-BASE-24-24 | 24"W x 24"L | 4,000 | 380 | ||
| CA-BASE-30-12 | 30"W x 30"L | 4,000 | 295 | CA-BASE-30-24 | 30"W x 30"L | 4,000 | 430 | ||
| CA-BASE-36-12 | 36"W x 36"L | 4,000 | 345 | CA-BASE-36-24 | 36"W x 36"L | 4,000 | 460 | ||
| CA-BASE-40-12 | 40"W x 40"L | 6,000 | 395 | CA-BASE-40-24 | 40"W x 40"L | 6,000 | 510 | ||
| CA-BASE-48-12 | 48"W x 48"L | 6,000 | 450 | CA-BASE-48-24 | 48"W x 48"L | 6,000 | 565 | ||
| CA-BASE-60-12 | 60"W x 60"L | 6,000 | 530 | CA-BASE-60-24 | 60"W x 60"L | 6,000 | 645 | ||
| CA-BASE-72-12 | 72"W x 72"L | 6,000 | 590 | CA-BASE-72-24 | 72"W x 72"L | 6,000 | 705 |
| MODEL NUMBER | (PRICING IS IN ADDITION TO THE COST OF THE CAROUSEL) | OVERALL SIZE (W x L) | CAPACITY UP TO (LB.) | WEIGHT (POUND) | MODEL NUMBER | (PRICING IS IN ADDITION TO THE COST OF THE CAROUSEL) | OVERALL SIZE (W x L) | CAPACITY UP TO (LB.) | WEIGHT (POUND) |
|---|---|---|---|---|---|---|---|---|---|
| CA-BASE-18-12 | 18"W x 18"L | 2,000 | 195 | CA-BASE-18-24 | 18"W x 18"L | 2,000 | 330 | ||
| CA-BASE-24-12 | 24"W x 24"L | 4,000 | 245 | CA-BASE-24-24 | 24"W x 24"L | 4,000 | 380 | ||
| CA-BASE-30-12 | 30"W x 30"L | 4,000 | 295 | CA-BASE-30-24 | 30"W x 30"L | 4,000 | 430 | ||
| CA-BASE-36-12 | 36"W x 36"L | 4,000 | 345 | CA-BASE-36-24 | 36"W x 36"L | 4,000 | 460 | ||
| CA-BASE-40-12 | 40"W x 40"L | 6,000 | 395 | CA-BASE-40-24 | 40"W x 40"L | 6,000 | 510 | ||
| CA-BASE-48-12 | 48"W x 48"L | 6,000 | 450 | CA-BASE-48-24 | 48"W x 48"L | 6,000 | 565 | ||
| CA-BASE-60-12 | 60"W x 60"L | 6,000 | 530 | CA-BASE-60-24 | 60"W x 60"L | 6,000 | 645 | ||
| CA-BASE-72-12 | 72"W x 72"L | 6,000 | 590 | CA-BASE-72-24 | 72"W x 72"L | 6,000 | 705 |
| Uniform Capacity (Lb.) | 2,000; 4,000; 6,000; (FIELD INSTALLED); HAND OPERATED LOCKING DETENT; FOOT OPERATED LOCKING DETENT |
|---|---|
| Overall Height | 2"; (FACTORY INSTALLED) |
| Ships Via | UPS; TRUCK |
| Style | ROUND; SQUARE |
| Use With Carousel Dia. | 18"; 24"; 30"; 36"; 40"; 48"; 60"; 72" |
| Overall Size (W X L) | 18"W x 18"L; 24"W x 24"L; 30"W x 30"L; 36"W x 36"L; 40"W x 40"L; 48"W x 48"L; 60"W x 60"L; 72"W x 72"L |
Source: 2018 catalog, page 158. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The catalog lists CA-18-2 through CA-BASE-72-24 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Uniform Capacity (Lb.): 2,000; 4,000; 6,000; (FIELD INSTALLED); HAND OPERATED LOCKING DETENT; FOOT OPERATED LOCKING DETENT; Overall Height: 2"; (FACTORY INSTALLED). These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 158. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for steel manual carousels?
The catalog records 70 model references for this family. The first listed model is CA-18-2. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right steel manual carousels configuration?
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
