| Model / reference | Steps including top step | Top step height (in) | Overall height (in) | Base W x L (in) | Weight (lb) |
|---|---|---|---|---|---|
| WA052414 | 5 STEP | 50” | 83” | 24 x 43 | 91 |
| WA062414 | 6 STEP | 60” | 93” | 24 x 49 | 100 |
| WA072414 | 7 STEP | 70” | 103” | 24 x 55 | 109 |
| WA082414 | 8 STEP | 80” | 113” | 24 x 61 | 127 |
| WA053214 | 5 STEP | 50” | 83” | 32 x 43 | 110 |
| WA063214 | 6 STEP | 60” | 93” | 32 x 49 | 122 |
| WA073214 | 7 STEP | 70” | 103” | 32 x 55 | 143 |
| WA083214 | 8 STEP | 80” | 113” | 32 x 61 | 160 |
| WA093214 | 9 STEP | 90” | 123” | 32 x 68 | 175 |
| WA103214 | 10 STEP | 100” | 133” | 32 x 74 | 193 |
| WA113214 | 11 STEP | 110” | 143” | 32 x 80 | 205 |
| WA123214 | 12 STEP | 120” | 153” | 32 x 87 | 220 |
| WA134014 | 13 STEP | 130” | 175” | 40 x 94 | 250 |
| WA144014 | 14 STEP | 140” | 185” | 40 x 100 | 280 |
| WA154014 | 15 STEP | 150” | 195” | 40 x 106 | 310 |
| Documented model configurations | 15 |
|---|---|
| Catalog feature / option | 450 LB. CAPACITY |
Source: 2026 ladder and access catalog, PDF page 15. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

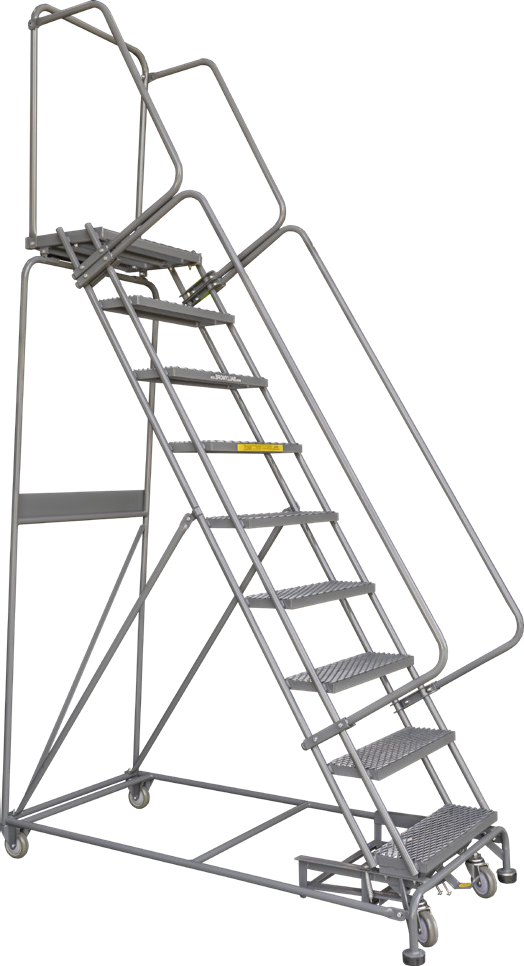

Weight-Actuated Lockstep Rolling Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: 450 LB. CAPACITY; This state of the art lockstep has one pedal which lifts the ladder into the rolling position; As you climb the ladder your weight activates the lockstep – securing the ladder to the floor in the climbing position; Available in 56° Ladder Slope or 50° Stairway Slope; 14” deep top step standard 21” and 28” available; Durable: manufactured with 1” OD tubing; Gray powder coat finish.
Model and option notes: 24” WIDE STEP.
Reference: 2026 ladder and access catalog, PDF page 15. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
