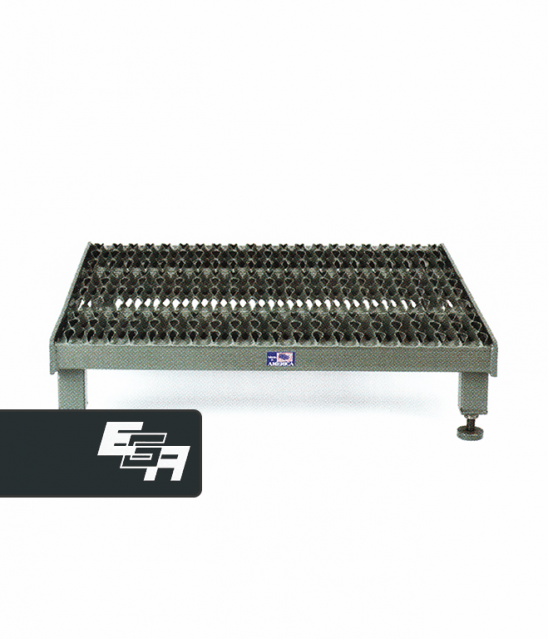

EGA manufacturer photograph from One-Step Adjustable Height Platforms (AHW – SERIES). Confirm the model and selected configuration with your quote.
| Model / reference | Configuration | W x d | Adjust height | Max height | Weight (lb) | Listed capacity |
|---|---|---|---|---|---|---|

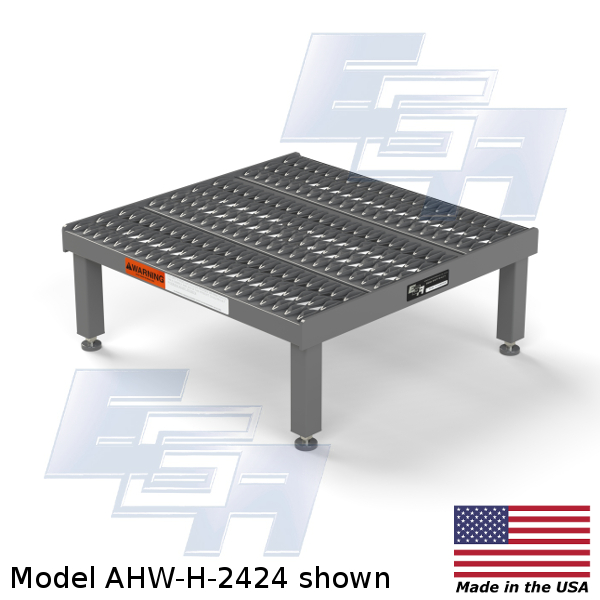

| AHW-H-2424 | One-Step Adjustable Height Platforms - Grip Strut | 24x24 | 9"-14" | 14 | 30 | 500 lbs |
| AHW-H-2436 | One-Step Adjustable Height Platforms - Grip Strut | 24x36 | 9"-14" | 14 | 40 | 500 lbs |
| AHW-H-2448 | One-Step Adjustable Height Platforms - Grip Strut | 24x48 | 9"-14" | 14 | 51 | 500 lbs |
| AHW-H-2460 | One-Step Adjustable Height Platforms - Grip Strut | 24x60 | 9"-14" | 14 | 61 | 500 lbs |
| AHW-L-2424 | One-Step Adjustable Height Platforms - Grip Strut | 24x24 | 5"-8" | 8 | 30 | 500 lbs |
| AHW-L-2436 | One-Step Adjustable Height Platforms - Grip Strut | 24x36 | 5"-8" | 8 | 40 | 500 lbs |
| AHW-L-2448 | One-Step Adjustable Height Platforms - Grip Strut | 24x48 | 5"-8" | 8 | 54 | 500 lbs |
| AHW-L-2460 | One-Step Adjustable Height Platforms - Grip Strut | 24x60 | 5"-8" | 8 | 60 | 500 lbs |
| Published model references | 8 |
|---|---|
| Listed capacity | 500 lbs |
Source: EGA Products product information, reviewed 2026-10-08. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Set a low standing platform to suit the work point using the AHW adjustable-height layout. The family includes multiple platform lengths and two listed height ranges.
Adjustment is made at threaded feet with locking nuts. EGA describes a 24-inch-deep Grip Strut platform and ranges of 5–8 or 9–14 inches. Use the selected model row for its dimensions, then confirm the setup needed on the actual floor.
The manufacturer lists 8 model references on this page. Keep the selected reference with its configuration and specifications; a listed height or capacity for one row does not apply automatically to every option.
For a adjustable-height stationary work platforms quote, include required adjusted height, platform length, floor condition and work-point clearance. Factory Equipment will review the request and respond as quickly as possible.
Manufacturer reference: EGA One-Step Adjustable Height Platforms (AHW – SERIES) reference ↗. Reviewed 2026-10-08.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Start with required adjusted height, platform length, floor condition and work-point clearance. Compare the model rows and request the exact reference so the required configuration can be confirmed.
No. Supplier photos are configuration examples. The model reference, comparison row and current drawing determine the arrangement being requested.
Choose a reference in the model selector and use the quote link. Include quantity, application, delivery location and required timing. Our team will review the details and respond as quickly as possible.
