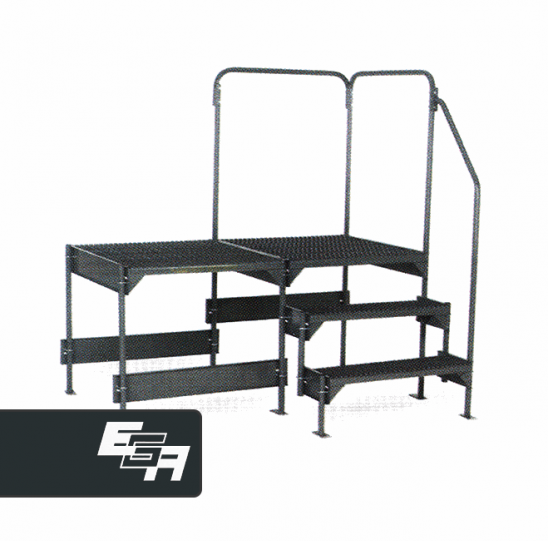

EGA manufacturer photograph from Custom Work Platforms (CW – SERIES). Confirm the model and selected configuration with your quote.
| Model / reference | Configuration | Style | Overall width | Overall length | Overall height | Platform width | Platform length | Platform height | Weight | Listed capacity | Number of steps |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CW0-21-0-3 | Custom Work Platforms | 0 | 39" | 39 | 21" | 35 | 39 | 21 | 100 | 500 lbs | — |
| CW0-27-0-3 | Custom Work Platforms | 0 | 39" | 39 | 27" | 35 | 39 | 27 | 115 | 500 lbs | — |
| CW0-33-0-3 | Custom Work Platforms | 0 | 39" | 39 | 33" | 35 | 39 | 33 | 115 | 500 lbs | — |
| CW0-39-0-3 | Custom Work Platforms | 0 | 39" | 39 | 39" | 35 | 39 | 39 | 115 | 500 lbs | — |
| CW0-45-0-3 | Custom Work Platforms | 0 | 39" | 39 | 45" | 35 | 39 | 45 | 115 | 500 lbs | — |
| CW1-21-2-3 | Custom Work Platforms | 1 | 39" | 48 | 21" | 35 | 39 | 21 | 120 | 500 lbs | 2 |
| CW1-21-2-6 | Custom Work Platforms | 1 | 39" | 86 | 21" | 35 | 77 | 21 | 187 | 500 lbs | 2 |
| CW1-33-3-3 | Custom Work Platforms | 1 | 39" | 57 | 33" | 35 | 39 | 33 | 140 | 500 lbs | 3 |
| CW1-33-3-6 | Custom Work Platforms | 1 | 39" | 95 | 33" | 35 | 77 | 33 | 230 | 500 lbs | 3 |
| CW2-21-2-3 | Custom Work Platforms | 2 | 39" | 48 | 60" | 35 | 39 | 21 | 150 | 500 lbs | 2 |
| CW2-21-2-6 | Custom Work Platforms | 2 | 39" | 86 | 60" | 35 | 77 | 21 | 235 | 500 lbs | 2 |

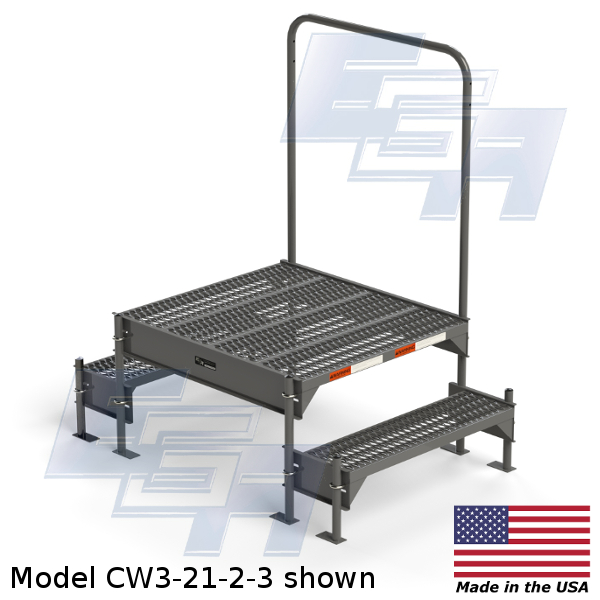

| CW3-21-2-3 | Custom Work Platforms | 3 | 39" | 57 | 60" | 35 | 39 | 21 | 150 | 500 lbs | 2 |
| CW3-21-2-6 | Custom Work Platforms | 3 | 39" | 95 | 60" | 35 | 77 | 21 | 225 | 500 lbs | 2 |
| CW4-21-2-3 | Custom Work Platforms | 4 | 39" | 48 | 60" | 35 | 39 | 21 | 145 | 500 lbs | 2 |
| CW4-21-2-6 | Custom Work Platforms | 4 | 39" | 86 | 60" | 35 | 77 | 21 | 225 | 500 lbs | 2 |
| CW5-27-3-3 | Custom Work Platforms | 5 | 39" | 57 | 66" | 35 | 39 | 27 | 185 | 500 lbs | 3 |
| CW5-27-3-6 | Custom Work Platforms | 5 | 39" | 95 | 66" | 35 | 77 | 27 | 285 | 500 lbs | 3 |
| CW5-33-3-3 | Custom Work Platforms | 5 | 39" | 57 | 72" | 35 | 39 | 33 | 185 | 500 lbs | 3 |
| CW5-33-3-6 | Custom Work Platforms | 5 | 39" | 95 | 72" | 35 | 77 | 33 | 290 | 500 lbs | 3 |
| CW6-33-3-3 | Custom Work Platforms | 6 | 39" | 75 | 72" | 35 | 39 | 33 | 207 | 500 lbs | 3 |
| CW6-33-3-6 | Custom Work Platforms | 6 | 39" | 113 | 72" | 35 | 77 | 33 | 290 | 500 lbs | 3 |
| CW6-45-4-3 | Custom Work Platforms | 6 | 39" | 93 | 84" | 35 | 39 | 45 | 245 | 500 lbs | 4 |
| CW6-45-4-6 | Custom Work Platforms | 6 | 39" | 131 | 84" | 35 | 77 | 45 | 335 | 500 lbs | 4 |
| CW7-27-3-3 | Custom Work Platforms | 7 | 39" | 57 | 66" | 35 | 39 | 27 | 180 | 500 lbs | 3 |
| CW7-27-3-6 | Custom Work Platforms | 7 | 39" | 95 | 66" | 35 | 77 | 27 | 260 | 500 lbs | 3 |
| CW7-33-3-3 | Custom Work Platforms | 7 | 39" | 57 | 72" | 35 | 39 | 33 | 175 | 500 lbs | 3 |
| CW7-33-3-6 | Custom Work Platforms | 7 | 39" | 95 | 72" | 35 | 77 | 33 | 265 | 500 lbs | 3 |
| CW7-45-4-3 | Custom Work Platforms | 7 | 39" | 66 | 84" | 35 | 39 | 45 | 200 | 500 lbs | 4 |
| CW7-45-4-6 | Custom Work Platforms | 7 | 39" | 104 | 84" | 35 | 77 | 45 | 290 | 500 lbs | 4 |
| CW8-39-4-3 | Custom Work Platforms | 8 | 39" | 66 | 78" | 35 | 39 | 39 | 205 | 500 lbs | 4 |
| CW8-39-4-6 | Custom Work Platforms | 8 | 39" | 104 | 78" | 35 | 77 | 39 | 310 | 500 lbs | 4 |
| CW8-45-4-3 | Custom Work Platforms | 8 | 39" | 66 | 84" | 35 | 39 | 45 | 205 | 500 lbs | 4 |
| CW8-45-4-6 | Custom Work Platforms | 8 | 39" | 104 | 84" | 35 | 77 | 45 | 310 | 500 lbs | 4 |
| CW9-33-3-3 | Custom Work Platforms | 9 | 39" | 75 | 72" | 35 | 39 | 33 | 235 | 500 lbs | 3 |
| CW9-33-3-6 | Custom Work Platforms | 9 | 39" | 113 | 72" | 35 | 77 | 33 | 340 | 500 lbs | 3 |
| Published model references | 35 |
|---|---|
| Overall width | 39" |
| Platform width | 35 |
| Listed capacity | 500 lbs |
Source: EGA Products product information, reviewed 2026-10-08. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Build a stationary work area around the equipment access points instead of choosing a platform solely by height. CW configurations offer different stair and railing layouts, including extension sections for connected platforms.
Style 0 is an add-on section; the other listed styles vary the placement of steps and handrails. EGA describes adjustable feet and modular connections. A connected arrangement needs its own drawing review rather than assuming that every section can be joined in every position.
The manufacturer lists 35 model references on this page. Keep the selected reference with its configuration and specifications; a listed height or capacity for one row does not apply automatically to every option.
For a modular stationary work platforms quote, include equipment outline, platform height, stair locations, railing openings and connection plan. Factory Equipment will review the request and respond as quickly as possible.
Manufacturer reference: EGA Custom Work Platforms (CW – SERIES) reference ↗. Reviewed 2026-10-08.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Start with equipment outline, platform height, stair locations, railing openings and connection plan. Compare the model rows and request the exact reference so the required configuration can be confirmed.
No. Supplier photos are configuration examples. The model reference, comparison row and current drawing determine the arrangement being requested.
Choose a reference in the model selector and use the quote link. Include quantity, application, delivery location and required timing. Our team will review the details and respond as quickly as possible.
