Equipment details

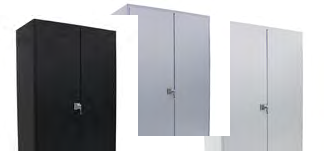

Bin and Shelf Storage Cabinets
Bin and Shelf Storage Cabinets. Documented model configurations: 20. Bin Brackets / Doors: Full. Steel Gauge / Doors: 14.
- Documented model configurations
- 20
- Bin Brackets / Doors
- Full
Open an image to inspect its original detail.
Specifications & options
| Model / reference | Width (in) | Height (in) | Shelf Quantity | Shelf Size W x D (in) | Shelf Capacity (lb) | Steel Gauge | Dimensions W x D x H (in) | Weight (lb) | Catalog configuration | Width (in) / White | Height (in) / White | Shelf Quantity / White | Shelf Size W x D (in) / White | Shelf Capacity (lb) / White | Steel Gauge / White | Dimensions W x D x H (in) / White | Weight (lb) / White |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F85875A0 | 36 | 72 | 3 | 36 x 22 | 1,000 | 14 | 36 x 24 x 72 | 280 | — | — | — | — | — | — | — | — | — |
| F85232A6 | 36 | 78 | 3 | 36 x 22 | 1,000 | 14 | 36 x 24 x 78 | 295 | — | — | — | — | — | — | — | — | — |
| F85876A9 | 36 | 84 | 3 | 36 x 22 | 1,000 | 14 | 36 x 24 x 84 | 310 | — | — | — | — | — | — | — | — | — |
| F85877A8 | 48 | 72 | 3 | 48 x 22 | 1,000 | 14 | 48 x 24 x 72 | 335 | — | — | — | — | — | — | — | — | — |
| F85874A1 | 48 | 78 | 3 | 48 x 22 | 1,000 | 14 | 48 x 24 x 78 | 355 | — | — | — | — | — | — | — | — | — |
| F85231A7 | 48 | 84 | 3 | 48 x 22 | 1,000 | 14 | 48 x 24 x 84 | 375 | — | — | — | — | — | — | — | — | — |
| F89358BK | — | — | — | — | — | — | — | — | Black | 36 | 78 | 3 | 36 x 18 | 1,000 | 14 | 36 x 24 x 78 | 306 |
| F89358SS | — | — | — | — | — | — | — | — | Silver | 36 | 78 | 3 | 36 x 18 | 1,000 | 14 | 36 x 24 x 78 | 306 |
| F89358WW | — | — | — | — | — | — | — | — | White | 36 | 78 | 3 | 36 x 18 | 1,000 | 14 | 36 x 24 x 78 | 306 |
| F89356BK | — | — | — | — | — | — | — | — | Black | 48 | 78 | 3 | 48 x 18 | 1,000 | 14 | 48 x 24 x 78 | 358 |
| F89356SS | — | — | — | — | — | — | — | — | Silver | 48 | 78 | 3 | 48 x 18 | 1,000 | 14 | 48 x 24 x 78 | 358 |
| F89356WW | — | — | — | — | — | — | — | — | White | 48 | 78 | 3 | 48 x 18 | 1,000 | 14 | 48 x 24 x 78 | 358 |
| Documented model configurations | 12 |
|---|
Source: 2025 storage and handling catalog, PDF page 7. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
Electronic-Locking Industrial Cabinets is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Keyless entry using premium secure Digilock® technology.; Eliminate the need for a physical key to lock or unlock.; Controlled access with customized entry code.; Protect, store, and easily find your tools, parts, and supplies.; (3) Shelves are easily adjustable on 7 3/8” increments.; Louvered doors for hanging plastic storage bins (select models).; 3-point locking system with ½” solid steel deadbolt.; Full piano hinge doors improve durability and longevity.; Programming bypass/master key included.; Additional accessories sold separately.; Premium powder coat paint finish.; Ships fully assembled, ready to use..
Model and option notes: • Additional accessories sold separately..
Documentation & drawings
Reference: 2025 storage and handling catalog, PDF page 7. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a model or configuration?
Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
Are the catalog specifications current?
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
How do I request a quote?
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
