Equipment details
Hydraulic Box Dumpers
Hydraulic Box Dumpers. Documented model configurations: 48. Dump Angle / 230V: 45°. Catalog feature / option: Reduce need for manual lifting, bending,…
- Documented model configurations
- 48
- Dump Angle / 230V
- 45°
Open an image to inspect its original detail.
Specifications & options
| MODEL NUMBER | FORK POCKETS (W x H) | FORK LENGTH | OVERALL WIDTH | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|

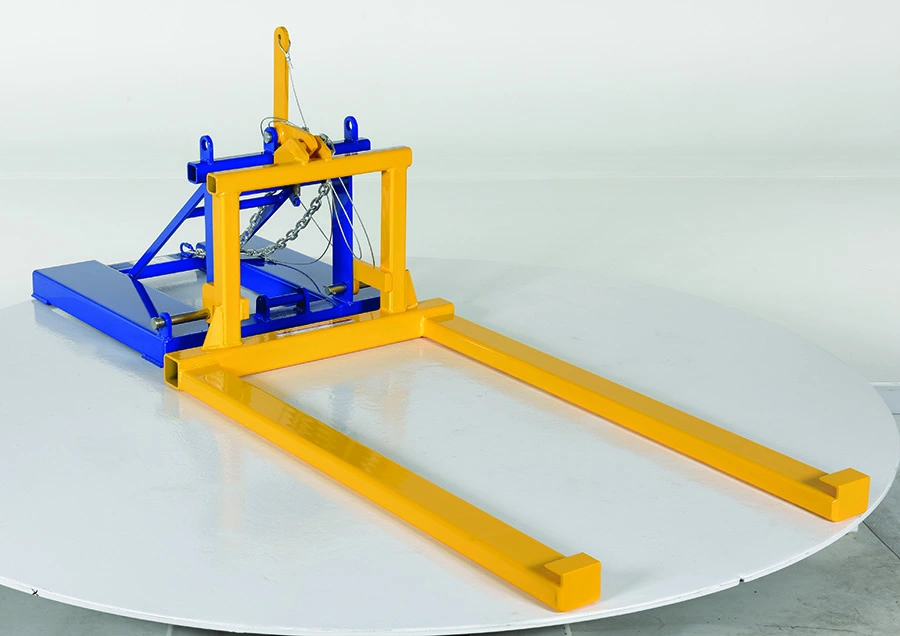

| PAL-D/R | 7½" x 2½" | 52" | 33" | 2,000 lb. | 300 |
| Fork Pockets (W X H) | 7½" x 2½" |
|---|---|
| Fork Length | 52" |
| Overall Width | 33" |
| Uniform Capacity | 2,000 lb. |
Source: 2018 catalog, page 186. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists PAL-D/R within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Fork Pockets (W X H): 7½" x 2½"; Fork Length: 52". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 186. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for pallet dumper/retainer?
The catalog records 1 model references for this family. The first listed model is PAL-D/R. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right pallet dumper/retainer configuration?
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
