| Model / reference | Catalog configuration | Chute Size W x D (in) / 230V | Dump Height (in) / 230V | Capacity (lb) / 230V | Dump Angle / 230V | Dimensions W x D x H (in) / 230V | Weight (lb) / 230V | Side Guard Accessory / 230V |
|---|---|---|---|---|---|---|---|---|
| F80193A3 | 460V | 36 x 36 | 36 | 2,000 | 45° | 51 x 50 x 66 | 1,210 | F89041 |
| F89036 | 230V | 36 x 36 | 36 | 2,000 | 45° | 51 x 50 x 66 | 1,210 | F89041 |
| F80192A2 | 460V | 36 x 36 | 36 | 4,000 | 45° | 51 x 62 x 66 | 1,515 | F89037 |
| F89035 | 230V | 36 x 36 | 36 | 4,000 | 45° | 51 x 62 x 66 | 1,515 | F89037 |
| F80191A1 | 460V | 36 x 36 | 36 | 6,000 | 45° | 51 x 62 x 66 | 1,515 | F89037 |
| F89034 | 230V | 36 x 36 | 36 | 6,000 | 45° | 51 x 62 x 66 | 1,515 | F89037 |
| F80190A0 | 460V | 36 x 36 | 48 | 2,000 | 45° | 51 x 50 x 72 | 1,320 | F89041 |
| F89033 | 230V | 36 x 36 | 48 | 2,000 | 45° | 51 x 50 x 72 | 1,320 | F89041 |
| F80189A9 | 460V | 36 x 36 | 48 | 4,000 | 45° | 51 x 62 x 72 | 1,670 | F89037 |
| F89032 | 230V | 36 x 36 | 48 | 4,000 | 45° | 51 x 62 x 72 | 1,670 | F89037 |
| F80188A8 | 460V | 36 x 36 | 48 | 6,000 | 45° | 51 x 62 x 72 | 1,670 | F89037 |
| F89031 | 230V | 36 x 36 | 48 | 6,000 | 45° | 51 x 62 x 72 | 1,670 | F89037 |
| F80187A7 | 460V | 36 x 36 | 60 | 2,000 | 45° | 51 x 50 x 72 | 1,230 | F89039 |
| F89030 | 230V | 36 x 36 | 60 | 2,000 | 45° | 51 x 50 x 72 | 1,230 | F89039 |
| F80186A6 | 460V | 36 x 36 | 60 | 4,000 | 45° | 51 x 62 x 72 | 1,620 | F89038 |
| F89029 | 230V | 36 x 36 | 60 | 4,000 | 45° | 51 x 62 x 72 | 1,620 | F89038 |
| F80185A5 | 460V | 36 x 36 | 60 | 6,000 | 45° | 51 x 62 x 72 | 1,620 | F89038 |
| F89028 | 230V | 36 x 36 | 60 | 6,000 | 45° | 51 x 62 x 72 | 1,620 | F89038 |
| F80175A5 | 460V | 36 x 36 | 72 | 2,000 | 45° | 51 x 50 x 84 | 1,360 | F89039 |
| F89027 | 230V | 36 x 36 | 72 | 2,000 | 45° | 51 x 50 x 84 | 1,360 | F89039 |
| F80174A4 | 460V | 36 x 36 | 72 | 4,000 | 45° | 51 x 62 x 84 | 1,730 | F89038 |
| F89026 | 230V | 36 x 36 | 72 | 4,000 | 45° | 51 x 62 x 84 | 1,730 | F89038 |
| F80173A3 | 460V | 36 x 36 | 72 | 6,000 | 45° | 51 x 62 x 84 | 1,730 | F89038 |
| F89025 | 230V | 36 x 36 | 72 | 6,000 | 45° | 51 x 62 x 84 | 1,730 | F89038 |
| F80184A4 | 460V | 51 x 48 | 36 | 2,000 | 45° | 66 x 63 x 66 | 1,470 | F89041 |
| F89024 | 230V | 51 x 48 | 36 | 2,000 | 45° | 66 x 63 x 66 | 1,470 | F89041 |
| F80183A3 | 460V | 51 x 48 | 36 | 4,000 | 45° | 66 x 63 x 66 | 1,860 | F89037 |
| F89023 | 230V | 51 x 48 | 36 | 4,000 | 45° | 66 x 63 x 66 | 1,860 | F89037 |
| F80182A2 | 460V | 51 x 48 | 36 | 6,000 | 45° | 66 x 63 x 66 | 1,860 | F89037 |
| F89022 | 230V | 51 x 48 | 36 | 6,000 | 45° | 66 x 63 x 66 | 1,860 | F89037 |
| F80181A1 | 460V | 51 x 48 | 48 | 2,000 | 45° | 66 x 63 x 72 | 1,590 | F89041 |
| F89021 | 230V | 51 x 48 | 48 | 2,000 | 45° | 66 x 63 x 72 | 1,590 | F89041 |
| F80180A0 | 460V | 51 x 48 | 48 | 4,000 | 45° | 66 x 63 x 72 | 2,025 | F89037 |
| F89020 | 230V | 51 x 48 | 48 | 4,000 | 45° | 66 x 63 x 72 | 2,025 | F89037 |
| F80179A9 | 460V | 51 x 48 | 48 | 6,000 | 45° | 66 x 63 x 72 | 2,025 | F89037 |
| F89019 | 230V | 51 x 48 | 48 | 6,000 | 45° | 66 x 63 x 72 | 2,025 | F89037 |
| F80178A8 | 460V | 51 x 48 | 60 | 2,000 | 45° | 66 x 63 x 72 | 1,665 | F89040 |
| F89018 | 230V | 51 x 48 | 60 | 2,000 | 45° | 66 x 63 x 72 | 1,665 | F89040 |
| F80177A7 | 460V | 51 x 48 | 60 | 4,000 | 45° | 66 x 63 x 72 | 1,975 | F89038 |
| F89017 | 230V | 51 x 48 | 60 | 4,000 | 45° | 66 x 63 x 72 | 1,975 | F89038 |
| F80176A6 | 460V | 51 x 48 | 60 | 6,000 | 45° | 66 x 63 x 72 | 1,975 | F89038 |
| F89016 | 230V | 51 x 48 | 60 | 6,000 | 45° | 66 x 63 x 72 | 1,975 | F89038 |
| F80172A2 | 460V | 51 x 48 | 72 | 2,000 | 45° | 66 x 62 x 84 | 1,860 | F89040 |
| F89015 | 230V | 51 x 48 | 72 | 2,000 | 45° | 66 x 62 x 84 | 1,860 | F89040 |
| F80171A1 | 460V | 51 x 48 | 72 | 4,000 | 45° | 66 x 62 x 84 | 2,100 | F89038 |
| F89014 | 230V | 51 x 48 | 72 | 4,000 | 45° | 66 x 62 x 84 | 2,100 | F89038 |
| F80170A0 | 460V | 51 x 48 | 72 | 6,000 | 45° | 66 x 62 x 84 | 2,100 | F89038 |
| F89013 | 230V | 51 x 48 | 72 | 6,000 | 45° | 66 x 62 x 84 | 2,100 | F89038 |
| Documented model configurations | 48 |
|---|---|
| Dump Angle / 230V | 45° |
| Catalog feature / option | Reduce need for manual lifting, bending, and loading. |
| Catalog feature / option | Spring-loaded hold down bar compatible with containers 30” to 56″ in height, adjustable on 2” increments. |
| Catalog feature / option | Operate using convenient handheld pendant with magnetic back, controlling the 3 phase 60 hertz, 460 volt motor. |
Source: 2025 storage and handling catalog, PDF page 31. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Hydraulic Box Dumpers is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Efficiently dump a variety of gaylords, totes, crates, tubs, and other containers.; Reduce need for manual lifting, bending, and loading.; Effortlessly dump material with improved efficiency and reduced fatigue or injury.; Spring-loaded hold down bar compatible with containers 30” to 56″ in height, adjustable on 2” increments.; Operate using convenient handheld pendant with magnetic back, controlling the 3 phase 60 hertz, 460 volt motor.; 60 second powered dump cycle, with gravity return.; Heavy duty 7 gauge steel construction, with structural steel frame.; Unit bolts directly to the floor to ensure safety and stability throughout operation.; Simply load containers by hand or using standard pallet jack (Models with 72”H at 4K & 6K lb. capacities have a 12” raised chute that requires forklift loading).; Smooth operation utilizing dual flow hydraulic control valve system.; Side guard accessory sold separately.; Ships fully assembled, ready to use..
Model and option notes: F80174A4* F89026* 4,000 51 x 62 x 84 1,730 F89038 F80173A3* F89025* 6,000; F80171A1* F89014* 4,000 66 x 62 x 84 2,100 F89038 F80170A0* F89013* 6,000; • Side guard accessory sold separately.; *12" raised chute requires forklift loading..
Reference: 2025 storage and handling catalog, PDF page 31. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
SKU JMD-1000-48

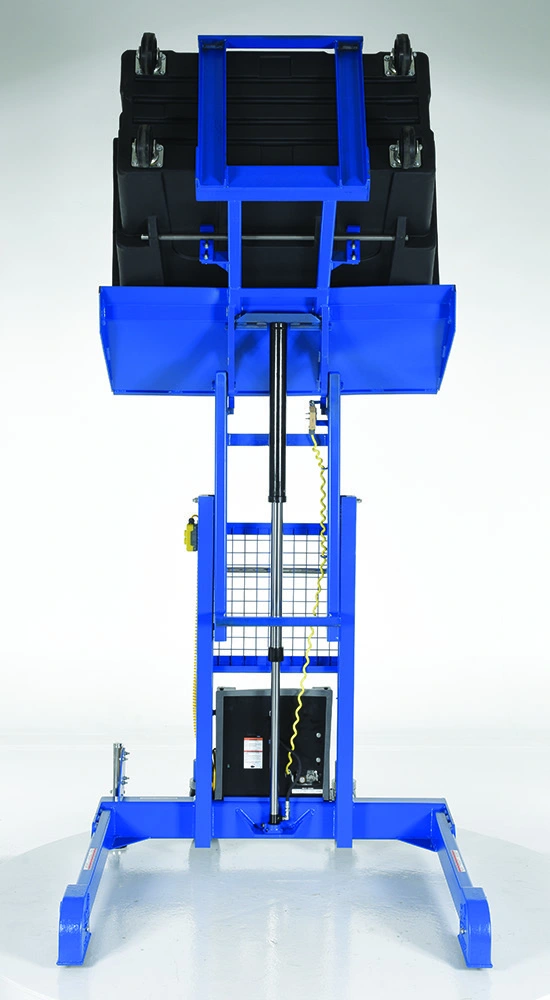

Multi-Purpose Tote Dumpers: 5 catalog model references. Dump Height: 48"; 60"; 72"; Rotated Height: 105¾"; 117¾"; 129¾"; ADDITIONAL ½ CUBIC YARD POLYE…
SKU HBD-2-36

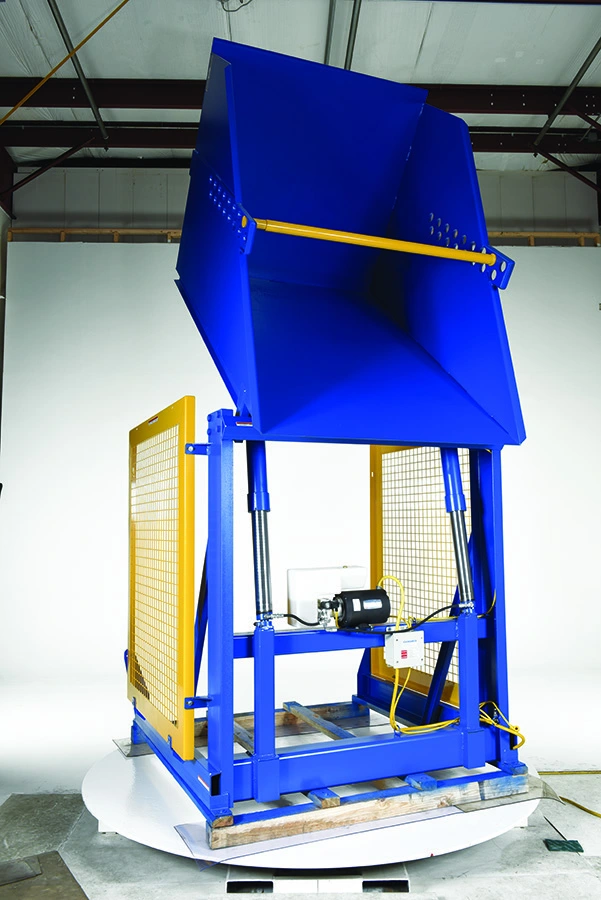

Electric/Hydraulic Box Dumpers: 14 catalog model references. Dump Height: 36"; 48"; 60"; Level Height: 53½"; 65"; 77"; FOOT CONTROL.
SKU PAL-D/R

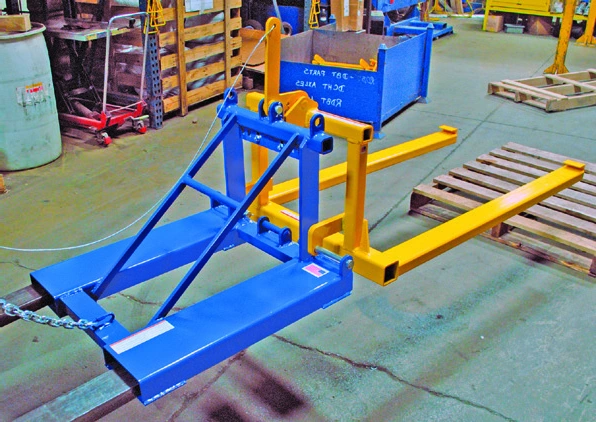

Pallet Dumper/Retainer: 1 catalog model references. Fork Pockets (W X H): 7½" x 2½"; Fork Length: 52".
