| Model / configuration | Load Capacity | Raised Height | Lowered Height | Overall Base W x L | Turntable Diameter | Shipping Weight |
|---|---|---|---|---|---|---|
| P3-AA | 4500 lbs | 27-3/4" | 9-1/2" | 36 x 36" | 43-5/8" | 450 lbs |
| P3-Spring | 4500 lbs | 28" | 9-1/2" | 36 x 36" | 43-5/8" | 410 lbs |
| P3-Spring-SST | 4500 lbs | 28" | 9-1/2" | 36 x 36" | 43-5/8" | 410 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | P3 All-Around Pallet Load Levelers |
| Documented configurations | 3 |
| Rated capacity | 4500 lbs |
| Lowered Height | 9-1/2" |
| Overall Base W x L | 36 x 36" |
| Turntable Diameter | 43-5/8" |
Source: Presto General Catalog 2026, PDF page 14. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

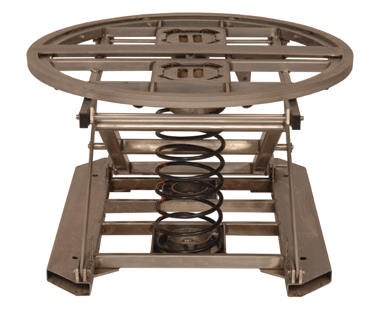

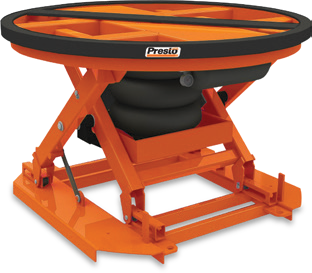

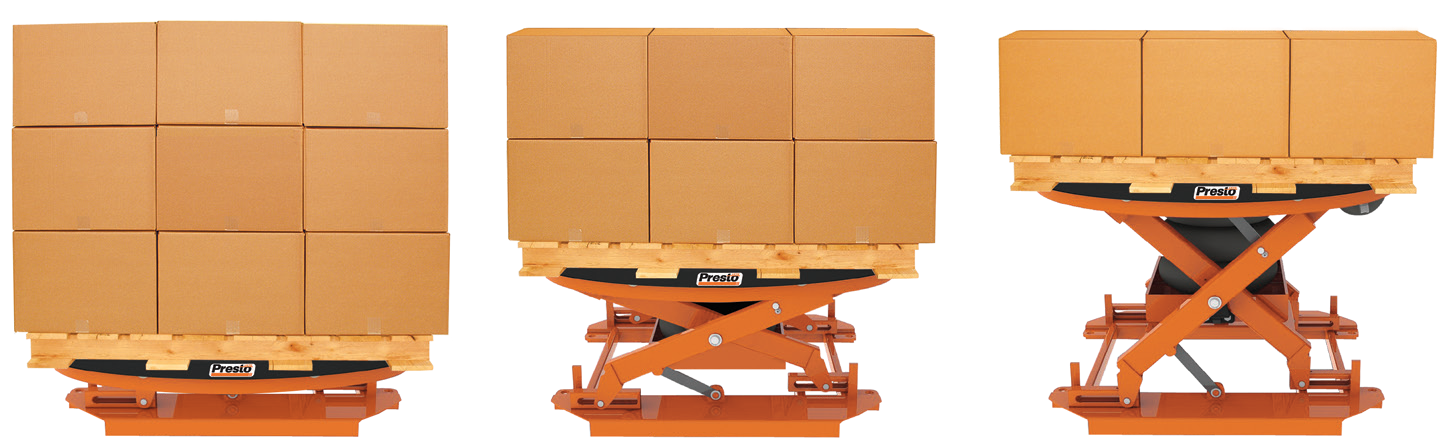

P3 All-Around levelers adjust pallet working height through airbag or spring action as cartons are loaded and removed, with a rotating top for access.
Compare airbag, spring and stainless-steel spring variants. Maximum capacity is 4500 lb. Spring selection is described for 400–4500 lb loads and should reflect weight variation; automatic leveling differs from powered lift control.
Reference: Presto General Catalog 2026, PDF page 14. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare airbag, spring and stainless-steel spring variants. Maximum capacity is 4500 lb. Spring selection is described for 400–4500 lb loads and should reflect weight variation; automatic leveling differs from powered lift control.
For P3 All-Around Pallet Load Levelers, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
Equipment details
P3PH units combine controlled hydraulic elevation and a turntable for pallets whose weight or dimensions vary during handling.
Equipment details

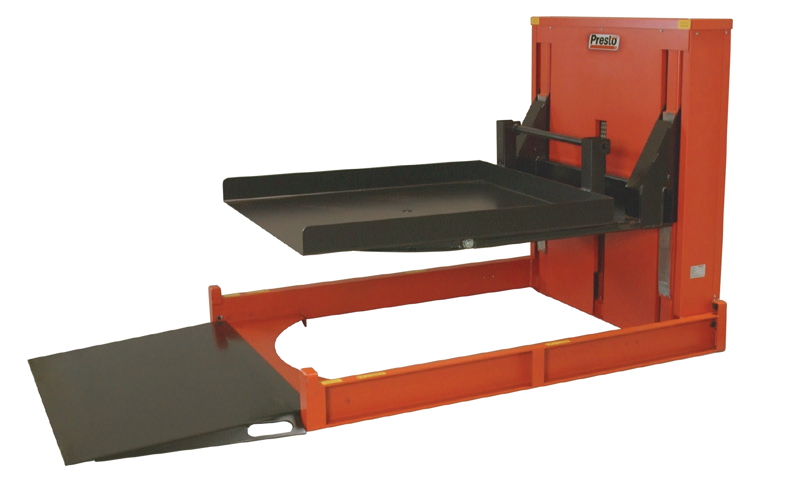

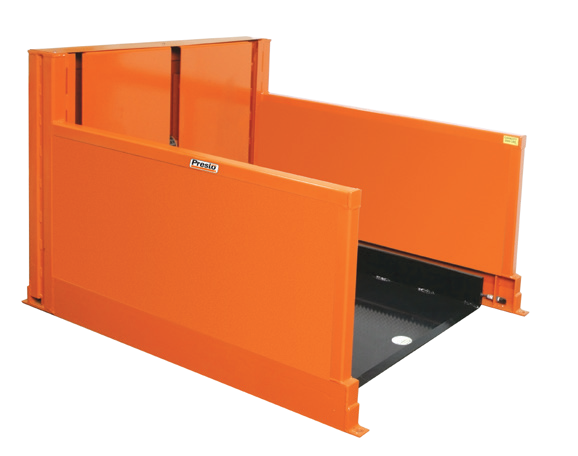

P4 loaders accept pallets at a low loading height and raise them within an enclosure for workstation access.
SKU P4-25-4348-LPT
P4-25-4348-LPT combines a floor-level loading arrangement with a turntable to reach multiple sides of a pallet.
