| Model / configuration | Load Capacity | Raised Height | Lowered Height | Platform Size | Dimensions W x L | Lifting Speed | Std. Motor | Std. Voltage Phase/Hz | Shipping Weight |
|---|---|---|---|---|---|---|---|---|---|
| P4-25-4348-LPT | 2500 lbs | 30" | 2" | 44 x 48" | 106” x 51” | 30 sec | 1 HP | 115/1/60 | 1400 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | P4 Floor-Level Loader with Turntable |
| Documented configurations | 1 |
| Rated capacity | 2500 lbs |
| Raised Height | 30" |
| Lowered Height | 2" |
| Platform Size | 44 x 48" |
| Dimensions W x L | 106” x 51” |
| Lifting Speed | 30 sec |
| Std. Motor | 1 HP |
| Std. Voltage Phase/Hz | 115/1/60 |
| Shipping Weight | 1400 lbs |
Source: Presto General Catalog 2026, PDF page 16. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

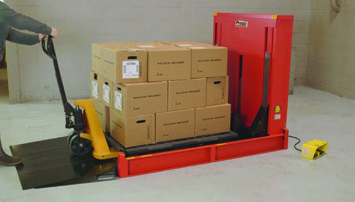

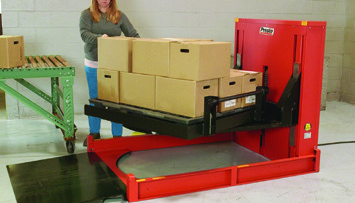

P4-25-4348-LPT combines a floor-level loading arrangement with a turntable to reach multiple sides of a pallet.
The catalog lists 2500 lb capacity, 30 in raised height and 2 in lowered height. Compare its 106 x 51 in footprint with the 44 x 48 in platform before placing the unit.
Reference: Presto General Catalog 2026, PDF page 16. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog lists 2500 lb capacity, 30 in raised height and 2 in lowered height. Compare its 106 x 51 in footprint with the 44 x 48 in platform before placing the unit.
For P4 Floor-Level Loader with Turntable, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
Equipment details
P3 All-Around levelers adjust pallet working height through airbag or spring action as cartons are loaded and removed, with a rotating top for access.
Equipment details
P3PH units combine controlled hydraulic elevation and a turntable for pallets whose weight or dimensions vary during handling.
Equipment details
P4 loaders accept pallets at a low loading height and raise them within an enclosure for workstation access.
