| Model / configuration | Load Capacity | Raised Height | Lowered Height | Platform Size | Dimensions W x L | Lifting Speed | Std. Motor | Std. Voltage Phase/Hz | Shipping Weight |
|---|---|---|---|---|---|---|---|---|---|
| P4-25-4448 | 2500 lbs | 28" | 3/8" | 44 x 48" | 51 x 61" | 22 sec | 1 HP | 115/1/60 | 1485 lbs |
| P4-25-5248 | 2500 lbs | 28" | 3/8" | 52 x 48" | 59 x 61" | 22 sec | 1 HP | 115/1/60 | 1620 lbs |
| P4-40-4448 | 4000 lbs | 28" | 3/8" | 44 x 48" | 51 x 61" | 30 sec | 1 HP | 115/1/60 | 1650 lbs |
| P4-40-5248 | 4000 lbs | 28" | 3/8" | 52 x 48" | 59 x 61" | 30 sec | 1 HP | 115/1/60 | 1800 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | P4 Floor-Level Pallet Loaders |
| Documented configurations | 4 |
| Raised Height | 28" |
| Lowered Height | 3/8" |
| Std. Motor | 1 HP |
| Std. Voltage Phase/Hz | 115/1/60 |
Source: Presto General Catalog 2026, PDF page 16. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

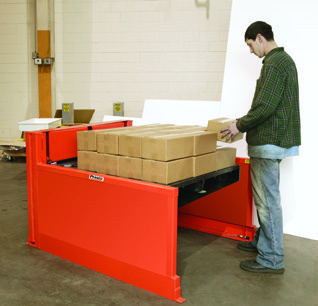

P4 loaders accept pallets at a low loading height and raise them within an enclosure for workstation access.
Choose a 44 or 52 in wide platform and 2500 or 4000 lb capacity. Use the full unit footprint as well as the 30 in raised height to plan the loading lane.
Reference: Presto General Catalog 2026, PDF page 16. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Choose a 44 or 52 in wide platform and 2500 or 4000 lb capacity. Use the full unit footprint as well as the 30 in raised height to plan the loading lane.
For P4 Floor-Level Pallet Loaders, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
Equipment details
P3 All-Around levelers adjust pallet working height through airbag or spring action as cartons are loaded and removed, with a rotating top for access.
Equipment details
P3PH units combine controlled hydraulic elevation and a turntable for pallets whose weight or dimensions vary during handling.
SKU P4-25-4348-LPT
P4-25-4348-LPT combines a floor-level loading arrangement with a turntable to reach multiple sides of a pallet.
