| MODEL NUMBER | NUMBER OF STEPS | TOP STEP HEIGHT | OVERALL LENGTH | STEP ANGLE | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| ATS-4-56 | 7 | 48 1/8" | 41 5/8" | 56° | 350 lb. | 188 |
| ATS-5-56 | 8 | 60 1/8" | 49 1/4" | 56° | 350 lb. | 192 |
| ATS-6-56 | 10 | 72 1/8" | 57 1/2" | 56° | 350 lb. | 214 |
| ATS-7-56 | 12 | 84 1/8" | 65 3/4" | 56° | 350 lb. | 224 |
| ATS-8-56 | 13 | 96 1/8" | 73 1/2" | 56° | 350 lb. | 251 |
| ATS-9-56 | 15 | 108 3/8" | 81 5/8" | 56° | 350 lb. | 284 |
| ATS-10-56 | 16 | 120 1/8" | 89 3/4" | 56° | 350 lb. | 312 |
| ATS-11-56 | 17 | 131 7/8" | 97 1/2" | 56° | 350 lb. | 374 |
| ATS-12-56 | 20 | 143 7/8" | 106" | 56° | 350 lb. | 400 |
| ATS-13-56 | 21 | 156 3/8" | 114 1/8" | 56° | 350 lb. | 438 |
| ATS-14-56 | 24 | 168 1/8" | 122 3/8" | 56° | 350 lb. | 470 |
| ATS-4-68 | 7 | 48 1/8" | 30" | 68° | 350 lb. | 164 |
| ATS-5-68 | 8 | 60 1/8" | 34 5/8" | 68° | 350 lb. | 180 |
| ATS-6-68 | 10 | 72 1/8" | 39 1/2" | 68° | 350 lb. | 212 |
| ATS-7-68 | 12 | 84 1/8" | 44 1/2" | 68° | 350 lb. | 238 |
| ATS-8-68 | 13 | 96 1/8" | 49 1/8" | 68° | 350 lb. | 248 |
| ATS-9-68 | 15 | 108 1/8" | 54 1/8" | 68° | 350 lb. | 256 |
| ATS-10-68 | 16 | 120 1/8" | 58 7/8" | 68° | 350 lb. | 274 |
| ATS-11-68 | 17 | 131 7/8" | 63 1/2" | 68° | 350 lb. | 298 |
| ATS-12-68 | 20 | 143 7/8" | 68 1/2" | 68° | 350 lb. | 338 |
| ATS-13-68 | 21 | 156 3/8" | 73 1/2" | 68° | 350 lb. | 406 |
| ATS-14-68 | 24 | 168 1/8" | 78 3/8" | 68° | 350 lb. | 456 |
| Step Angle | 56°; 68° |
|---|---|
| Uniform Capacity | 350 lb. |
Source: 2018 catalog, page 236. Confirm current specifications and options for the selected model.

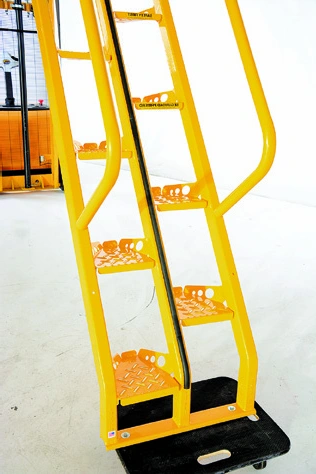

PRODUCT INFORMATION
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists ATS-4-56 through ATS-14-68 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Step Angle: 56°; 68°; Uniform Capacity: 350 lb.. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 236. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 22 model references for this family. The first listed model is ATS-4-56. Compare the model rows and confirm the required configuration when quoting.
Choose an access configuration around the required standing height, approach and available floor space. Check the model’s dimensions against the work area before selecting it.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
