| PLATE* WIDTH | PLATE LENGTH | HEIGHT DIFF. | MODEL NUMBER | SHIPS VIA | 3/8" PLATE THICKNESS | NET WT. (POUND) | UNIFORM CAPACITY | MODEL NUMBER | 1/2" PLATE THICKNESS SHIPS VIA | NET WT. (POUND) | UNIFORM CAPACITY |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30" | 24" | 3" | E-3024 | UPS | 35 | 3,000 lb. | EH-3024 | UPS | 42 | 5,200 lb. | |
| 30" | 30" | 4" | E-3030 | UPS | 40 | 2,300 lb. | EH-3030 | UPS | 50 | 4,100 lb. | |
| 30" | 36" | 5" | E-3036 | UPS | 49 | 1,800 lb. | EH-3036 | UPS | 61 | 3,500 lb. | |
| 30" | 48" | 7" | E-3048 | UPS | 59 | 1,400 lb. | EH-3048 | UPS | 74 | 2,600 lb. | |
| 36" | 24" | 3" | E-3624 | UPS | 45 | 3,600 lb. | EH-3624 | UPS | 49 | 6,200 lb. | |
| 36" | 30" | 4" | E-3630 | UPS | 55 | 3,000 lb. | EH-3630 | UPS | 60 | 5,100 lb. | |
| 36" | 36" | 5" | E-3636 | UPS | 71 | 2,500 lb. | EH-3636 | UPS | 85 | 4,300 lb. | |
| 36" | 48" | 7" | E-3648 | UPS | 81 | 1,900 lb. | EH-3648 | UPS | 89 | 3,000 lb. | |
| 42" | 24" | 3" | E-4224 | UPS | 44 | 4,300 lb. | EH-4224 | UPS | 56 | 7,200 lb. | |
| 42" | 30" | 4" | E-4230 | UPS | 51 | 3,300 lb. | EH-4230 | UPS | 67 | 5,900 lb. | |
| 42" | 48" | 7" | E-4248 | UPS | 80 | 2,100 lb. | EH-4248 | LTL | 103 | 3,500 lb. | |
| 48" | 24" | 3" | E-4824 | UPS | 48 | 5,200 lb. | EH-4824 | UPS | 55 | 8,200 lb. | |
| 48" | 30" | 4" | E-4830 | UPS | 63 | 4,100 lb. | EH-4830 | LTL | 73 | 6,300 lb. | |
| 48" | 36" | 5" | E-4836 | UPS | 71 | 3,500 lb. | EH-4836 | LTL | 89 | 5,300 lb. | |
| 48" | 42" | 6" | E-4842 | LTL | 81 | 3,000 lb. | EH-4842 | LTL | 103 | 4,300 lb. | |
| 48" | 48" | 7" | E-4848 | LTL | 91 | 2,600 lb. | EH-4848 | LTL | 118 | 3,800 lb. | |
| 48" | 54" | 8" | E-4854 | LTL | 102 | 2,200 lb. | EH-4854 | LTL | 133 | 3,300 lb. | |
| 48" | 60" | 9" | E-4860 | LTL | 112 | 1,800 lb. | EH-4860 | LTL | 153 | 2,900 lb. | |
| 60" | 24" | 3" | E-6024 | UPS | 73 | 5,700 lb. | EH-6024 | LTL | 75 | 10,000 lb. | |
| 60" | 30" | 4" | E-6030 | LTL | 85 | 4,600 lb. | EH-6030 | LTL | 88 | 7,800 lb. | |
| 60" | 36" | 5" | E-6036 | LTL | 75 | 4,100 lb. | EH-6036 | LTL | 109 | 6,600 lb. | |
| 60" | 42" | 6" | E-6042 | LTL | 107 | 3,500 lb. | EH-6042 | LTL | 127 | 5,500 lb. | |
| 60" | 48" | 7" | E-6048 | LTL | 119 | 2,900 lb. | EH-6048 | LTL | 145 | 4,800 lb. | |
| 60" | 54" | 8" | E-6054 | LTL | 127 | 2,400 lb. | EH-6054 | LTL | 159 | 4,100 lb. | |
| 60" | 60" | 9" | E-6060 | LTL | 136 | 2,000 lb. | EH-6060 | LTL | 177 | 3,700 lb. | |
| 72" | 24" | 3" | E-7224 | LTL | 84 | 6,500 lb. | EH-7224 | LTL | 87 | 11,900 lb. | |
| 72" | 30" | 4" | E-7230 | LTL | 92 | 5,400 lb. | EH-7230 | LTL | 106 | 9,500 lb. | |
| 72" | 36" | 5" | E-7236 | LTL | 100 | 4,300 lb. | EH-7236 | LTL | 129 | 7,800 lb. | |
| 72" | 48" | 7" | E-7248 | LTL | 138 | 3,400 lb. | EH-7248 | LTL | 173 | 5,900 lb. |
| PLATE* WIDTH | PLATE LENGTH | HEIGHT DIFF. | MODEL NUMBER | SHIPS VIA | 3/8" PLATE THICKNESS | NET WT. (POUND) | UNIFORM CAPACITY | MODEL NUMBER | 1/2" PLATE THICKNESS SHIPS VIA | NET WT. (POUND) | UNIFORM CAPACITY |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30" | 24" | 3" | E-3024 | UPS | 35 | 3,000 lb. | EH-3024 | UPS | 42 | 5,200 lb. | |
| 30" | 30" | 4" | E-3030 | UPS | 40 | 2,300 lb. | EH-3030 | UPS | 50 | 4,100 lb. | |
| 30" | 36" | 5" | E-3036 | UPS | 49 | 1,800 lb. | EH-3036 | UPS | 61 | 3,500 lb. | |
| 30" | 48" | 7" | E-3048 | UPS | 59 | 1,400 lb. | EH-3048 | UPS | 74 | 2,600 lb. | |
| 36" | 24" | 3" | E-3624 | UPS | 45 | 3,600 lb. | EH-3624 | UPS | 49 | 6,200 lb. | |
| 36" | 30" | 4" | E-3630 | UPS | 55 | 3,000 lb. | EH-3630 | UPS | 60 | 5,100 lb. | |
| 36" | 36" | 5" | E-3636 | UPS | 71 | 2,500 lb. | EH-3636 | UPS | 85 | 4,300 lb. | |
| 36" | 48" | 7" | E-3648 | UPS | 81 | 1,900 lb. | EH-3648 | UPS | 89 | 3,000 lb. | |
| 42" | 24" | 3" | E-4224 | UPS | 44 | 4,300 lb. | EH-4224 | UPS | 56 | 7,200 lb. | |
| 42" | 30" | 4" | E-4230 | UPS | 51 | 3,300 lb. | EH-4230 | UPS | 67 | 5,900 lb. | |
| 42" | 48" | 7" | E-4248 | UPS | 80 | 2,100 lb. | EH-4248 | LTL | 103 | 3,500 lb. | |
| 48" | 24" | 3" | E-4824 | UPS | 48 | 5,200 lb. | EH-4824 | UPS | 55 | 8,200 lb. | |
| 48" | 30" | 4" | E-4830 | UPS | 63 | 4,100 lb. | EH-4830 | LTL | 73 | 6,300 lb. | |
| 48" | 36" | 5" | E-4836 | UPS | 71 | 3,500 lb. | EH-4836 | LTL | 89 | 5,300 lb. | |
| 48" | 42" | 6" | E-4842 | LTL | 81 | 3,000 lb. | EH-4842 | LTL | 103 | 4,300 lb. | |
| 48" | 48" | 7" | E-4848 | LTL | 91 | 2,600 lb. | EH-4848 | LTL | 118 | 3,800 lb. | |
| 48" | 54" | 8" | E-4854 | LTL | 102 | 2,200 lb. | EH-4854 | LTL | 133 | 3,300 lb. | |
| 48" | 60" | 9" | E-4860 | LTL | 112 | 1,800 lb. | EH-4860 | LTL | 153 | 2,900 lb. | |
| 60" | 24" | 3" | E-6024 | UPS | 73 | 5,700 lb. | EH-6024 | LTL | 75 | 10,000 lb. | |
| 60" | 30" | 4" | E-6030 | LTL | 85 | 4,600 lb. | EH-6030 | LTL | 88 | 7,800 lb. | |
| 60" | 36" | 5" | E-6036 | LTL | 75 | 4,100 lb. | EH-6036 | LTL | 109 | 6,600 lb. | |
| 60" | 42" | 6" | E-6042 | LTL | 107 | 3,500 lb. | EH-6042 | LTL | 127 | 5,500 lb. | |
| 60" | 48" | 7" | E-6048 | LTL | 119 | 2,900 lb. | EH-6048 | LTL | 145 | 4,800 lb. | |
| 60" | 54" | 8" | E-6054 | LTL | 127 | 2,400 lb. | EH-6054 | LTL | 159 | 4,100 lb. | |
| 60" | 60" | 9" | E-6060 | LTL | 136 | 2,000 lb. | EH-6060 | LTL | 177 | 3,700 lb. | |
| 72" | 24" | 3" | E-7224 | LTL | 84 | 6,500 lb. | EH-7224 | LTL | 87 | 11,900 lb. | |
| 72" | 30" | 4" | E-7230 | LTL | 92 | 5,400 lb. | EH-7230 | LTL | 106 | 9,500 lb. | |
| 72" | 36" | 5" | E-7236 | LTL | 100 | 4,300 lb. | EH-7236 | LTL | 129 | 7,800 lb. | |
| 72" | 48" | 7" | E-7248 | LTL | 138 | 3,400 lb. | EH-7248 | LTL | 173 | 5,900 lb. |
| MODEL NUMBER | ALUMINUM DOCKPLATE OPTIONS • series A, AH, E, EH & AHTD | DESCRIPTION |
|---|---|---|

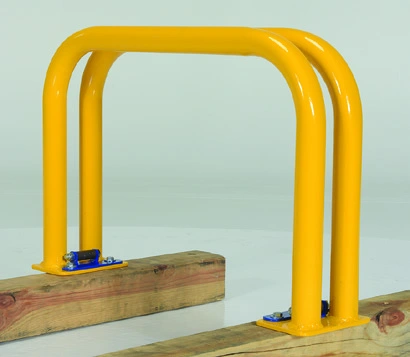

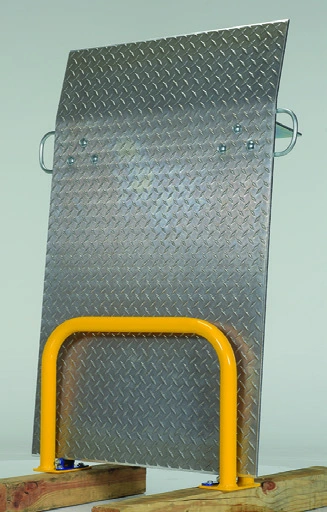

| DPR-2616 | Dock Plate Rack (A, AH, E & EH series only) | |
| OHDL | No Handles | |
| 1HDL | One Handle | |
| SDP | Smooth Deck Plate | (Diamond side down with grip tape) |
| SBL | Special Bend Location | |
| S2B | Special 2nd Bend Location | |
| SLL | Special Location of Legs | |
| LHDL | Extra Pair of Legs, Handles & Hdwr. | |
| ATC-12 | Anti-Theft Chain (144") | |
| TRADE | Trade in Allowance (FOB IN) |
| Plate* Width | 30"; 36"; 42"; 48"; 60"; 72" |
|---|---|
| Plate Length | 24"; 30"; 36"; 48"; 42"; 54"; 60" |
| Height Diff. | 3"; 4"; 5"; 7"; 6"; 8"; 9" |
| Ships Via | UPS; LTL |
| 1/2" Plate Thickness Ships Via | UPS; LTL |
| Aluminum Dockplate Options • Series A, Ah, E, Eh & Ahtd | Smooth Deck Plate |
Source: 2018 catalog, page 23. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The catalog lists E-3024 through TRADE within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Plate* Width: 30"; 36"; 42"; 48"; 60"; 72"; Plate Length: 24"; 30"; 36"; 48"; 42"; 54"; 60". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 23. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 68 model references for this family. The first listed model is E-3024. Compare the model rows and confirm the required configuration when quoting.
