| MODEL NUMBER | OVERALL SIZE WITH LIP | OPERATION | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|
| RR-65-20 | 6'W x 5'4"L | Pull Chain | 20,000 lb. | 1570 |
| RR-66-20 | 6'W x 6'4"L | Pull Chain | 20,000 lb. | 1766 |
| RR-68-20 | 6'W x 8'4"L | Pull Chain | 20,000 lb. | 2144 |
| RR-610-20 | 6'W x 10'4"L | Pull Chain | 20,000 lb. | 2517 |
| RR-75-20 | 7'W x 5'4"L | Pull Chain | 20,000 lb. | 1766 |
| RR-76-20 | 7'W x 6'4"L | Pull Chain | 20,000 lb. | 1970 |
| RR-78-20 | 7'W x 8'4"L | Pull Chain | 20,000 lb. | 2382 |
| RR-710-20 | 7'W x 10'4"L | Pull Chain | 20,000 lb. | 2808 |
| Overall Size With Lip | 6'W x 5'4"L; 6'W x 6'4"L; 6'W x 8'4"L; 6'W x 10'4"L; 7'W x 5'4"L; 7'W x 6'4"L; 7'W x 8'4"L; 7'W x 10'4"L |
|---|---|

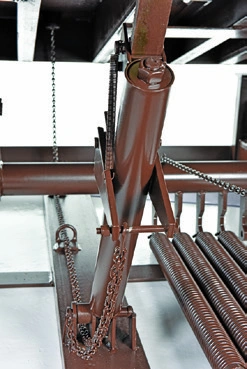

| Operation | Pull Chain |
| Uniform Capacity | 20,000 lb. |
Source: 2018 catalog, page 10. Confirm current specifications and options for the selected model.

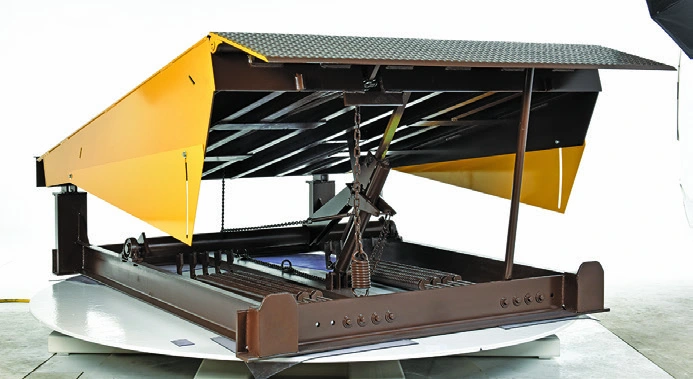

PRODUCT INFORMATION
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The catalog lists RR-65-20 through RR-710-20 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Overall Size With Lip: 6'W x 5'4"L; 6'W x 6'4"L; 6'W x 8'4"L; 6'W x 10'4"L; 7'W x 5'4"L; 7'W x 6'4"L; 7'W x 8'4"L; 7'W x 10'4"L; Operation: Pull Chain. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 10. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 8 model references for this family. The first listed model is RR-65-20. Compare the model rows and confirm the required configuration when quoting.
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
