| MODEL NUMBER | OVERALL SIZE WITH LIP | OPERATION | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|
| EH-65-20 | 6'W x 5'4"L | ELECTRIC HYDRAULIC | 20,000 lb. | 1407 |
| EH-66-20 | 6'W x 6'4"L | ELECTRIC HYDRAULIC | 20,000 lb. | 1568 |
| EH-68-20 | 6'W x 8'4"L | ELECTRIC HYDRAULIC | 20,000 lb. | 1907 |
| EH-610-20 | 6'W x 10'4"L | ELECTRIC HYDRAULIC | 20,000 lb. | 2267 |
| EH-75-20 | 7'W x 5'4"L | ELECTRIC HYDRAULIC | 20,000 lb. | 1566 |
| EH-76-20 | 7'W x 6'4"L | ELECTRIC HYDRAULIC | 20,000 lb. | 1753 |
| EH-78-20 | 7'W x 8'4"L | ELECTRIC HYDRAULIC | 20,000 lb. | 2145 |
| EH-710-20 | 7'W x 10'4"L | ELECTRIC HYDRAULIC | 20,000 lb. | 2558 |
| MODEL NUMBER | MECHANICAL & ELECTRIC HYDRAULIC DOCK LEVELER OPTIONS | DESCRIPTION | WEIGHT (POUND) |
|---|---|---|---|
| WS-DV | DUAL VINYL WEATHER STRIPPING | PRE-INSTALLED | -- |

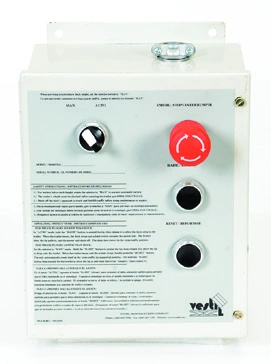

| ES | EMERGENCY STOP | (RR-SERIES ONLY) | 54 |
| SPO | SHALLOW PIT OPTION | (17½" MINIMUM DEPTH) | -- |
| FI | UNDER-DECK FOAM INSULATION | 6 | |
| 18"LIP/6 | 18" LONG LIP | FOR 6' WIDE DOCK LEVELER | 31 |
| 18"LIP/7 | 18" LONG LIP | FOR 7' WIDE DOCK LEVELER | 36 |
| FOD/6' | LEG OPTION | FOR IN FRONT OF DOCK PLACEMENT (6' LENGTH) | 240 |
| FOD/8' | LEG OPTION | FOR IN FRONT OF DOCK PLACEMENT (8' LENGTH) | 240 |
| FOD/10' | LEG OPTION | FOR IN FRONT OF DOCK PLACEMENT (10' LENGTH) | 240 |
| CAS-65 | CURB ANGLE SET | FOR 6' x 5' DOCK LEVELER | 160 |
| CAS-66 | CURB ANGLE SET | FOR 6' x 6' DOCK LEVELER | 166 |
| CAS-68 | CURB ANGLE SET | FOR 6' x 8' DOCK LEVELER | 172 |
| CAS-610 | CURB ANGLE SET | FOR 6' x 10' DOCK LEVELER | 180 |
| CAS-75 | CURB ANGLE SET | FOR 7' x 5' DOCK LEVELER | 168 |
| CAS-76 | CURB ANGLE SET | FOR 7' x 6' DOCK LEVELER | 174 |
| CAS-78 | CURB ANGLE SET | FOR 7' x 8' DOCK LEVELER | 180 |
| CAS-710 | CURB ANGLE SET | FOR 7' x 10' DOCK LEVELER | 188 |
| SS/65 | STEEL SHELL | FOR 6' x 5' POUR IN PLACE INSTALLATION | 218 |
| SS/66 | STEEL SHELL | FOR 6' x 6' POUR IN PLACE INSTALLATION | 285 |
| SS/68 | STEEL SHELL | FOR 6' x 8' POUR IN PLACE INSTALLATION | 290 |
| SS/610 | STEEL SHELL | FOR 6' x 10' POUR IN PLACE INSTALLATION | 298 |
| SS/75 | STEEL SHELL | FOR 7' x 5' POUR IN PLACE INSTALLATION | 238 |
| SS/76 | STEEL SHELL | FOR 7' x 6' POUR IN PLACE INSTALLATION | 252 |
| SS/78 | STEEL SHELL | FOR 7' x 8' POUR IN PLACE INSTALLATION | 264 |
| SS/710 | STEEL SHELL | FOR 7' x 10' POUR IN PLACE INSTALLATION | 277 |
| Overall Size With Lip | 6'W x 5'4"L; 6'W x 6'4"L; 6'W x 8'4"L; 6'W x 10'4"L; 7'W x 5'4"L; 7'W x 6'4"L; 7'W x 8'4"L; 7'W x 10'4"L |
|---|---|
| Operation | ELECTRIC HYDRAULIC |
| Uniform Capacity | 20,000 lb. |
| Mechanical & Electric Hydraulic Dock Leveler Options | DUAL VINYL WEATHER STRIPPING; EMERGENCY STOP; SHALLOW PIT OPTION; UNDER-DECK FOAM INSULATION; 18" LONG LIP; LEG OPTION; CURB ANGLE SET; STEEL SHELL |
Source: 2018 catalog, page 10. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The catalog lists EH-65-20 through SS/710 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Overall Size With Lip: 6'W x 5'4"L; 6'W x 6'4"L; 6'W x 8'4"L; 6'W x 10'4"L; 7'W x 5'4"L; 7'W x 6'4"L; 7'W x 8'4"L; 7'W x 10'4"L; Operation: ELECTRIC HYDRAULIC. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 10. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 33 model references for this family. The first listed model is EH-65-20. Compare the model rows and confirm the required configuration when quoting.
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
