Open an image to inspect its original detail.
| MODEL NUMBER | OVERALL WIDTH | USABLE WIDTH | OVERALL LENGTH | MAXIMUM SINGLE AXLE CAPACITY | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| AMD-2418 | 24" | 21½" | 18" | 400 lb. | 500 lb. | 8 |
| AMD-3018 | 30" | 27½" | 18" | 400 lb. | 600 lb. | 13 |
| AMD-3618 | 36" | 33½" | 18" | 400 lb. | 700 lb. | 14 |
| Overall Width | 24"; 30"; 36" |
|---|---|
| Usable Width | 21½"; 27½"; 33½" |
| Overall Length | 18" |
| Maximum Single Axle Capacity | 400 lb. |
| Uniform Capacity | 500 lb.; 600 lb.; 700 lb. |
Source: 2018 catalog, page 25. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION

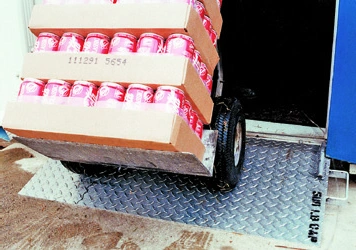

Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The catalog lists AMD-2418 through AMD-3618 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Overall Width: 24"; 30"; 36"; Usable Width: 21½"; 27½"; 33½". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 25. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 3 model references for this family. The first listed model is AMD-2418. Compare the model rows and confirm the required configuration when quoting.
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
