Open an image to inspect its original detail.
| MODEL NUMBER | OPERATION | **USABLE WIDTH | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|

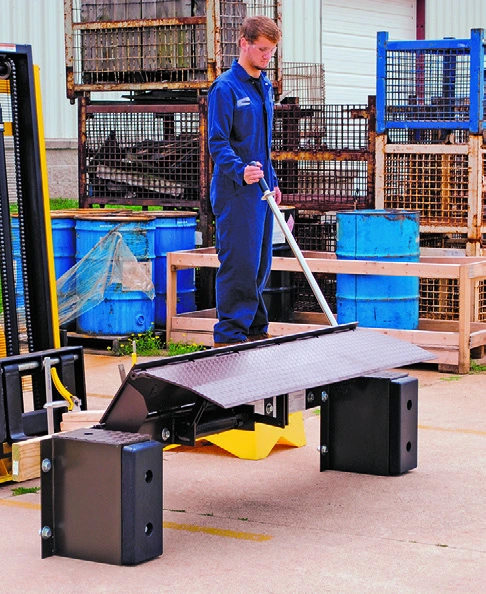

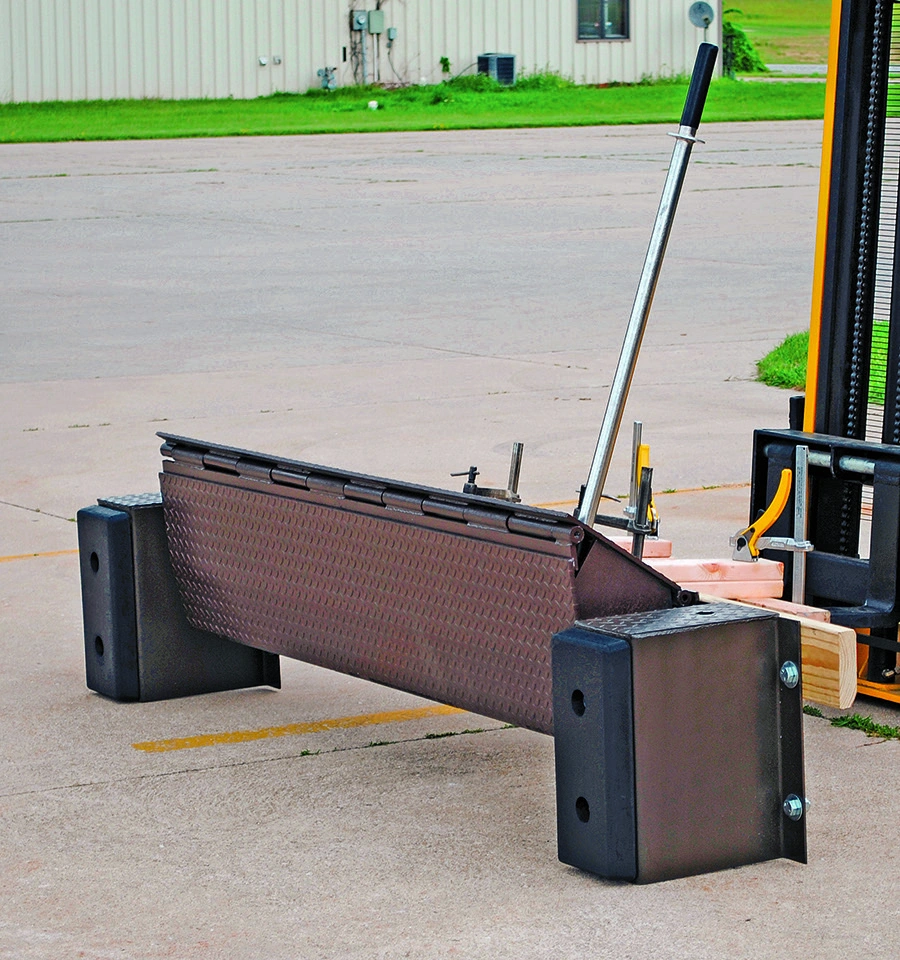

| FM-0648 | MECHANICAL | 48" | 6,000 lb. | 348 |
| FM-2066 | MECHANICAL | 66" | 20,000 lb. | 514 |
| FM-2072 | MECHANICAL | 72" | 20,000 lb. | 523 |
| FM-2078 | MECHANICAL | 78" | 20,000 lb. | 560 |
| FM-2566 | MECHANICAL | 66" | 25,000 lb. | 556 |
| FM-2572 | MECHANICAL | 72" | 25,000 lb. | 575 |
| FM-3066 | MECHANICAL | 66" | 30,000 lb. | 663 |
| FM-3072 | MECHANICAL | 72" | 30,000 lb. | 709 |

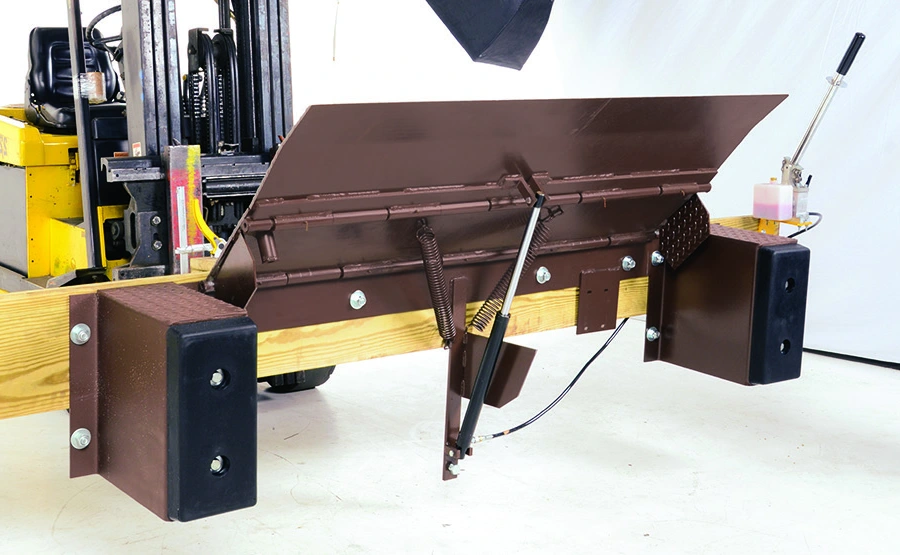

| PP-1572-36* | HAND PUMP | 72" | 15,000 lb. | 752 |
| PP-2066 | HAND PUMP | 66" | 20,000 lb. | 583 |
| PP-2072 | HAND PUMP | 72" | 20,000 lb. | 627 |
| PP-2566 | HAND PUMP | 66" | 25,000 lb. | 622 |
| PP-2572 | HAND PUMP | 72" | 25,000 lb. | 671 |
| PP-2572-36* | HAND PUMP | 72" | 25,000 lb. | 1168 |
| PP-3066 | HAND PUMP | 66" | 30,000 lb. | 998 |
| PP-3072 | HAND PUMP | 72" | 30,000 lb. | 1061 |

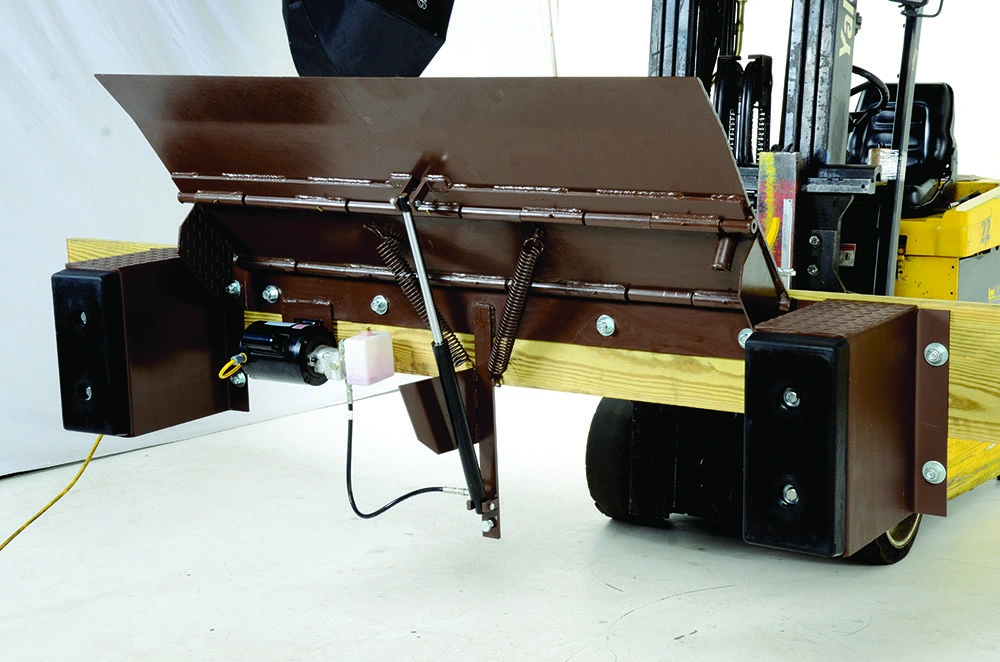

| PE-1572-36* | ELECTRIC | 72" | 15,000 lb. | 749 |
| PE-2066 | ELECTRIC | 66" | 20,000 lb. | 581 |
| PE-2072 | ELECTRIC | 72" | 20,000 lb. | 601 |
| PE-2566 | ELECTRIC | 66" | 25,000 lb. | 619 |
| PE-2572 | ELECTRIC | 72" | 25,000 lb. | 649 |
| PE-2572-36* | ELECTRIC | 72" | 25,000 lb. | 826 |
| PE-3066 | ELECTRIC | 66" | 30,000 lb. | 745 |
| PE-3072 | ELECTRIC | 72" | 30,000 lb. | 782 |
| MODEL NUMBER | EDGE-O-DOCK LEVELER OPTIONS | DESCRIPTION | WEIGHT (POUND) |
|---|---|---|---|
| FM-HOOK | PULLING HOOK FOR MECHANICAL UNIT (OLD STYLE) | 3 | |
| FM-BAR | ACTUATION HANDLE FOR MECHANICAL UNIT | 13 | |
| BB | STEEL BUMPER BOX | 75 | |
| RB | RUBBER BUMPER (REPLACEMENT), 18"W x 8"H x 2"P | 16 | |
| FM-FM | FM-SERIES (HOOK STYLE) | TO FM-SERIES (HANDLE STYLE) CONVERSION KIT | 12 |
| FM-PP | FM-SERIES TO PP-SERIES CONVERSION KIT | 53 | |
| FM-PE | FM-SERIES TO PE-SERIES CONVERSION KIT | 89 | |
| PP-PE | PP-SERIES TO PE-SERIES CONVERSION KIT | 56 | |
| CE | CURB EDGE - 6" CHANNEL x 96" LONG | 90 | |
| CED | CANTED EDGE | -- | |
| RAMP-2 | APPROACH RAMP 96"W x 12"L x 2"H | 120 | |
| RAMP-4 | APPROACH RAMP 96"W x 24"L x 4"H | 215 | |
| AP | APPROACH PLATE ¼" THICK x 12"L x 96"W | 132 | |
| AP-BE | APPROACH PLATE ¼" THICK x 12"L x 96"W WITH BEVELED EDGE | 130 |
| Operation | MECHANICAL; HAND PUMP; ELECTRIC |
|---|---|
| **Usable Width | 48"; 66"; 72"; 78" |
| Uniform Capacity | 6,000 lb.; 20,000 lb.; 25,000 lb.; 30,000 lb.; 15,000 lb. |
| Edge-O-Dock Leveler Options | STEEL BUMPER BOX; FM-SERIES (HOOK STYLE); CANTED EDGE; APPROACH RAMP 96"W x 12"L x 2"H; APPROACH RAMP 96"W x 24"L x 4"H |
Source: 2018 catalog, page 11. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The catalog lists FM-0648 through AP-BE within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Operation: MECHANICAL; HAND PUMP; ELECTRIC; **Usable Width: 48"; 66"; 72"; 78". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 11. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 38 model references for this family. The first listed model is FM-0648. Compare the model rows and confirm the required configuration when quoting.
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
