Open an image to inspect its original detail.
| MODEL NUMBER | STEEL YARD RAMP OPTIONS | DESCRIPTION | WEIGHT (POUND) |
|---|---|---|---|

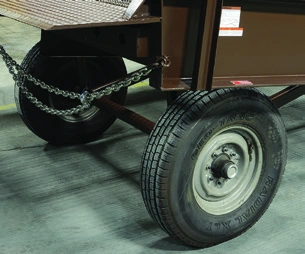

| YR-HL | PNEUMATIC TIRE & 12V DC HYDRAULIC LIFT | PNEUMATIC TIRE & HAND PUMP HYDRAULIC LIFT (5 MPH MAX. TOW SPEED) (NOT AVAILABLE ON YRD MODELS) (5 MPH MAX. TOW SPEED) (NOT AVAILABLE ON YRD MODELS) | 230 288 |

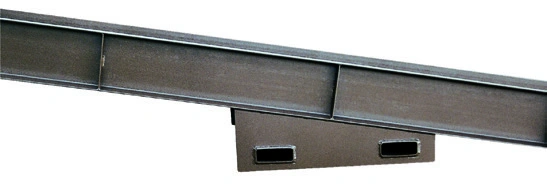

| YR-FS | FORK LIFT PICKUP SLOTS (7½"W X 2½"H USABLE ON 24" CENTERS) | 460 | |

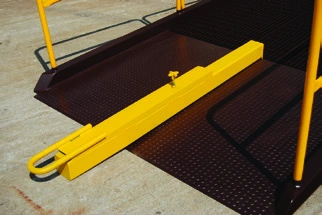

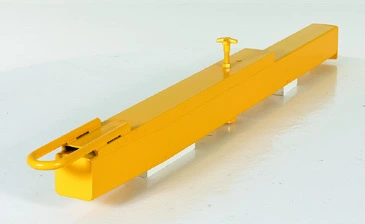

| YR-TB-H | TOW BAR HITCH | 145 | |
| YR-TB-P | TOW BAR POCKET (REPLACEMENT) | 35 | |

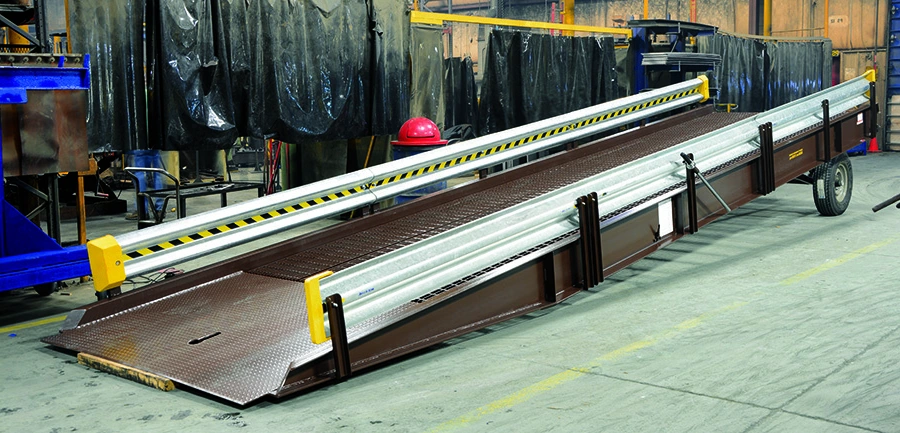

| YR-GR-30 | 12" HIGH GUARD RAIL OPTION FOR 30 FEET RAMPS (BOTH SIDES) | 456 | |
| YR-GR-36 | 12" HIGH GUARD RAIL OPTION FOR 36 FEET RAMPS (BOTH SIDES) | 550 | |

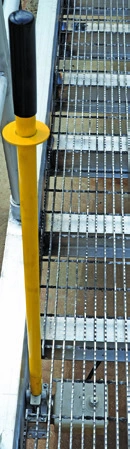

| YR-HDRL | NON-REMOVABLE 42" HIGH STEEL HANDRAIL WITH 21" MIDRAIL (WELDED) | 9/FT. | |
| YR-RHDRL | REMOVABLE 42" HIGH STEEL HANDRAIL WITH 21" MIDRAIL | 9/FT. | |
| YR-RAHDRL | REMOVABLE 42" HIGH ALUMINUM HANDRAIL WITH 21" MIDRAIL | 3/FT. | |
| YR-DH | HOLES IN LIP TO LAG RAMP TO TOP OF DOCK | -- |
| MODEL NUMBER | ALUMINUM YARD RAMP OPTIONS | DESCRIPTION | WEIGHT (POUND) |
|---|---|---|---|
| AYR-HL-DC | 12V DC HYDRAULIC LIFT | (INCLUDES ON-BOARD CHARGER) | 50 |
| AYR-TB-H | TOW BAR HITCH | 145 | |
| AYR-TB-P | TOW BAR POCKET (REPLACEMENT) | 35 | |
| AYR-GR-30 | 12" HIGH GUARD RAIL OPTION FOR 30 FEET RAMPS | 456 | |
| AYR-GR-36 | 12" HIGH GUARD RAIL OPTION FOR 36 FEET RAMPS | 550 | |
| AY-AHDRL | NON-REMOVABLE 42" HIGH ALUMINUM HANDRAIL WITH 21" MIDRAIL (WELDED) | 3/FT. | |
| AY-RHDRL | REMOVABLE 42" HIGH ALUMINUM HANDRAIL WITH 21" MIDRAIL (SOLD PER FOOT) | 18/FT. | |
| AY-RAHDRL | REMOVABLE 42" HIGH STEEL HANDRAIL WITH 21" MIDRAIL (SOLD PER FOOT) | 18/FT. | |
| AYR-CRB6 | 6" CURB HEIGHT | -- | |
| AYR-YEL | YELLOW SAFETY CURBS | -- | |

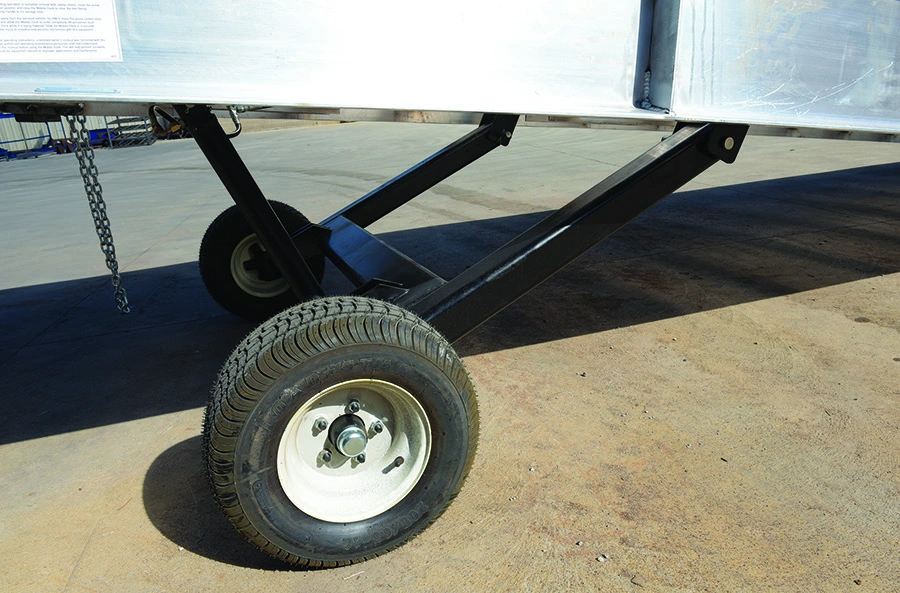

| AY-PNTR | 20½" x 8" PNEUMATIC TIRE OPTION | -- | |
| AYR-DH | HOLES IN LIP TO LAG RAMP TO TOP OF DOCK | -- | |
| SY-CRB6 | 6" CURB HEIGHT | -- | |
| SY-YEL | YELLOW SAFETY CURBS | -- | |
| SY-PNTR | 20½" x 8" PNEUMATIC TIRE OPTION | -- |
| Steel Yard Ramp Options | PNEUMATIC TIRE & 12V DC HYDRAULIC LIFT; TOW BAR HITCH; TOW BAR POCKET (REPLACEMENT) |
|---|---|
| Aluminum Yard Ramp Options | 12V DC HYDRAULIC LIFT; TOW BAR HITCH; TOW BAR POCKET (REPLACEMENT); 6" CURB HEIGHT; YELLOW SAFETY CURBS; 20½" x 8" PNEUMATIC TIRE OPTION; HOLES IN LIP TO LAG RAMP TO TOP OF DOCK |
Source: 2018 catalog, page 22. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The catalog lists YR-HL through SY-PNTR within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Steel Yard Ramp Options: PNEUMATIC TIRE & 12V DC HYDRAULIC LIFT; TOW BAR HITCH; TOW BAR POCKET (REPLACEMENT); Aluminum Yard Ramp Options: 12V DC HYDRAULIC LIFT; TOW BAR HITCH; TOW BAR POCKET (REPLACEMENT); 6" CURB HEIGHT; YELLOW SAFETY CURBS; 20½" x 8" PNEUMATIC TIRE OPTION; HOLES IN LIP TO LAG RAMP TO TOP OF DOCK. These values cover multiple models; consult the individual row for the model being quoted.

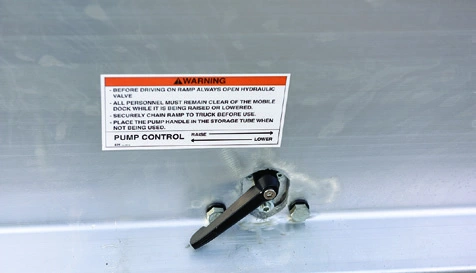

The catalog entry describes hand-pump actuation. Check the configuration table and quote details to establish which features apply to your selection.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 22. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 25 model references for this family. The first listed model is YR-HL. Compare the model rows and confirm the required configuration when quoting.
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
