| Model / reference | Catalog configuration | CAPACITY / 1,500 | PLATFORM HEIGHT MAX / 55” | PLATFORM L X W / 75” x 47” | WEIGHT / 2,178 | HEIGHT RAISED / 98” | HEIGHT LOWERED / 44” | BATTERY / 2-12V DC | OVERALL LENGTH / 105” | OVERALL WIDTH / 68” |
|---|---|---|---|---|---|---|---|---|---|---|
| RT-PLD-5K | PLD-PLUS | 5,000 | 56” | 75” x 59” | 3,462 | 106” | 52” | 48V/85Ah | 104” | 95” |
| Catalog configuration | PLD-PLUS |
|---|---|
| CAPACITY / 1,500 | 5,000 |
| PLATFORM HEIGHT MAX / 55” | 56” |
| PLATFORM L X W / 75” x 47” | 75” x 59” |
| WEIGHT / 2,178 | 3,462 |
| HEIGHT RAISED / 98” | 106” |
| HEIGHT LOWERED / 44” | 52” |
| BATTERY / 2-12V DC | 48V/85Ah |
| OVERALL LENGTH / 105” | 104” |
| OVERALL WIDTH / 68” | 95” |
| Catalog feature / option | Heavy Duty Capacity–5,000 lbs |
| Catalog feature / option | All-in-one control handle for loading dock stearing, movement forward and reverse and platform raising and lowering. |
| Catalog feature / option | Heavy Duty Capacity– 5,000 lbs. |
| Catalog feature / option | Rough Terrain Treaded RT Solid Tires |
| Catalog feature / option | Extra large platform designed to address a wide variety of products |
| Catalog feature / option | Convenient 110 volt charging |
| Catalog feature / option | Sites Without Loading Docks |
| Catalog feature / option | Sites That Require A Heavier Weight Capacity |
Source: 2026 material handling catalog, PDF page 14. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

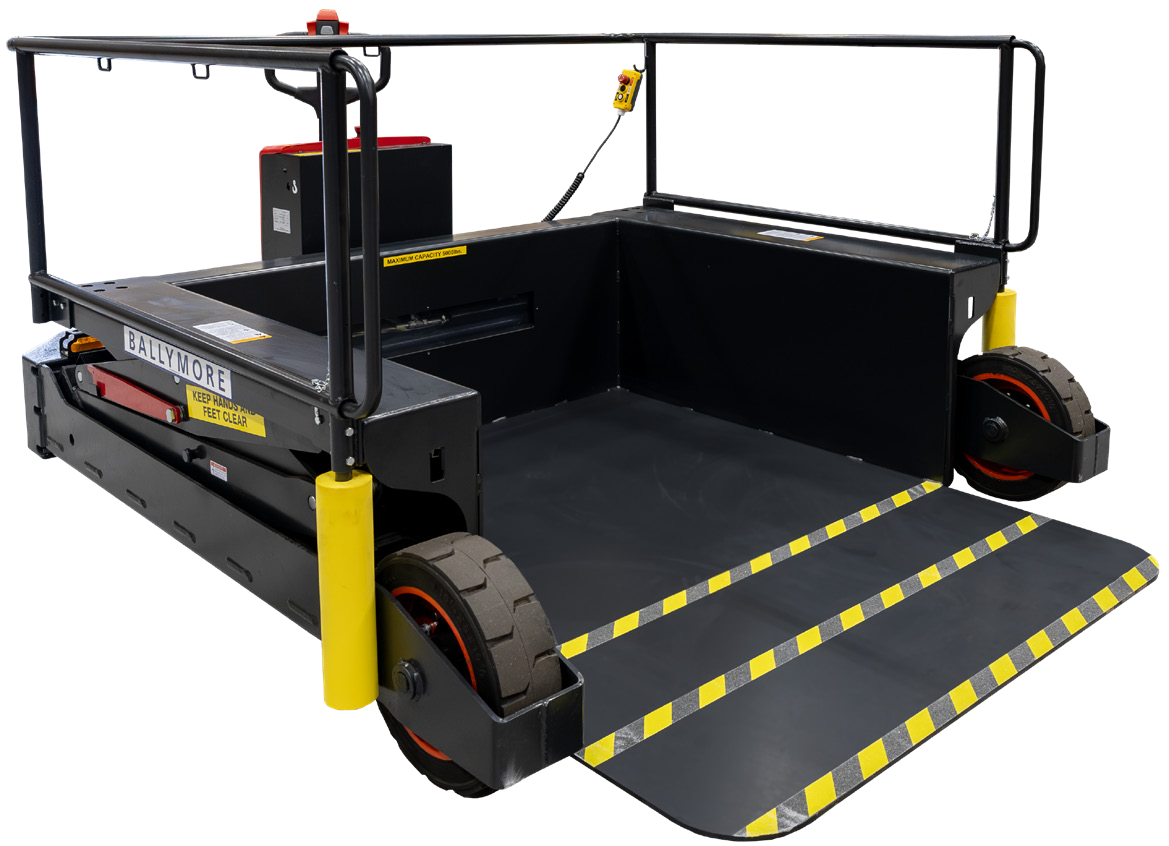

Rough-Terrain Portable Loading Dock — RT-PLD-5K is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Built in Cycle Counter; Heavy Duty Capacity–5,000 lbs; Powered in forward or reverse directions; All-in-one control handle for loading dock stearing, movement forward and reverse and platform raising and lowering.; Heavy Duty Capacity– 5,000 lbs.; Rough Terrain Treaded RT Solid Tires; Extra large platform designed to address a wide variety of products; Numerous safety features including emergency stop button; Convenient 110 volt charging; Extendable side rails; Battery power indicator; Built in cycle counter RT-PLD-5K; Strip Malls; Sites Without Loading Docks; Rough Terrain; Rental Locations; Construction Sites; Gravel Parking Lots; Sites That Require A Heavier Weight Capacity.
Reference: 2026 material handling catalog, PDF page 14. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
