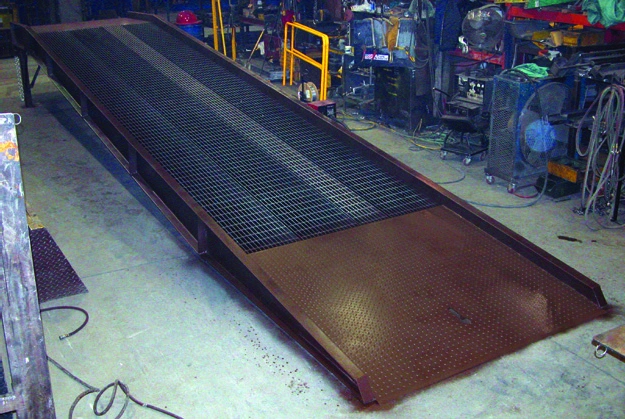

| MODEL NUMBER | PORTABLE STEEL YARD RAMPS | UNIFORM CAPACITY | OVERALL** RAMP WIDTH | USABLE RAMP WIDTH | LENGTH (FEET) | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| YR-16-7230 | 16,000 lb. | 72" | 66" | 30 | 4625 | |
| YR-16-8430 | 16,000 lb. | 84" | 78" | 30 | 5375 | |
| YR-16-7236 | 16,000 lb. | 72" | 66" | 36 | 5925 | |
| YR-16-8436 | 16,000 lb. | 84" | 78" | 36 | 6250 | |
| YR-20-7330 | 20,000 lb. | 73" | 66" | 30 | 5275 | |
| YR-20-8530 | 20,000 lb. | 85" | 78" | 30 | 5852 | |
| YR-20-7336 | 20,000 lb. | 73" | 66" | 36 | 6275 | |
| YR-20-8536 | 20,000 lb. | 85" | 78" | 36 | 6975 | |
| YR-25-7330 | 25,000 lb. | 73" | 66" | 30 | 5450 | |
| YR-25-8530 | 25,000 lb. | 85" | 78" | 30 | 6000 | |
| YR-25-7336 | 25,000 lb. | 73" | 66" | 36 | 6475 | |
| YR-25-8536 | 25,000 lb. | 85" | 78" | 36 | 7175 | |
| YR-30-7330 | 30,000 lb. | 73" | 66" | 30 | 5600 | |
| YR-30-8530 | 30,000 lb. | 85" | 78" | 30 | 6175 | |
| YR-30-7336 | 30,000 lb. | 73" | 66" | 36 | 6650 | |
| YR-30-8536 | 30,000 lb. | 85" | 78" | 36 | 7350 |
| MODEL NUMBER | PORTABLE STEEL YARD RAMPS WITH MECHANICAL EDGE-O-DOCK UNIFORM CAPACITY | OVERALL WIDTH | USABLE WIDTH | LENGTH (FEET) | WEIGHT (POUND) |
|---|---|---|---|---|---|
| YRD-16-7236-M | 16,000 lb. | 72" | 66" | 36 | 6495 |
| YRD-16-8436-M | 16,000 lb. | 84" | 78" | 36 | 6775 |
| YRD-20-7336-M | 20,000 lb. | 73" | 66" | 36 | 6800 |
| YRD-20-8536-M | 20,000 lb. | 85" | 78" | 36 | 7500 |
| YRD-25-7336-M | 25,000 lb. | 73" | 66" | 36 | 7000 |
| YRD-25-8536-M | 25,000 lb. | 85" | 78" | 36 | 7700 |
| YRD-30-7336-M | 30,000 lb. | 73" | 66" | 36 | 7175 |
| YRD-30-8536-M | 30,000 lb. | 85" | 78" | 36 | 7875 |
| MODEL NUMBER | UNIFORM CAPACITY | PORTABLE STEEL YARD RAMPS WITH HAND PUMP HYDRAULIC EDGE-O-DOCK** | OVERALL WIDTH | USABLE WIDTH | LENGTH (FEET) | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| YRD-16-7236-H | 16,000 lb. | 72" | 66" | 36 | 6495 | |
| YRD-16-8436-H | 16,000 lb. | 84" | 78" | 36 | 6775 | |
| YRD-20-7336-H | 20,000 lb. | 73" | 66" | 36 | 6800 | |
| YRD-20-8536-H | 20,000 lb. | 85" | 78" | 36 | 7500 | |
| YRD-25-7336-H | 25,000 lb. | 73" | 66" | 36 | 7000 | |
| YRD-25-8536-H | 25,000 lb. | 85" | 78" | 36 | 7700 | |
| YRD-30-7336-H | 30,000 lb. | 73" | 66" | 36 | 7175 | |
| YRD-30-8536-H | 30,000 lb. | 85" | 78" | 36 | 7875 |

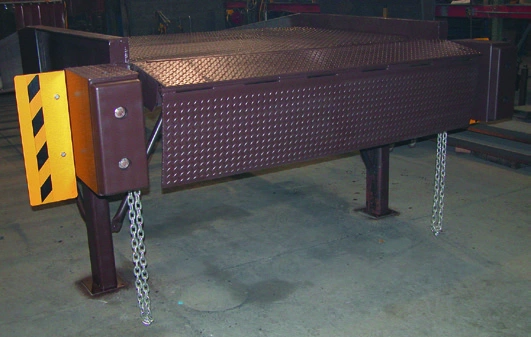

| MODEL NUMBER | STATIONARY STEEL YARD RAMPS WITH EDGE-O-DOCK | UNIFORM CAPACITY | OVERALL WIDTH | USABLE WIDTH | LENGTH (FEET) | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| YRDS-16-7236-M | 16,000 lb. | 72" | 66" | 36 | 6275 | |
| YRDS-16-8536-M | 16,000 lb. | 85" | 78" | 36 | 6600 | |
| YRDS-20-8536-M | 20,000 lb. | 85" | 78" | 36 | 7325 | |
| YRDS-16-7236-H | 16,000 lb. | 72" | 66" | 36 | 6275 | |
| YRDS-16-8536-H | 16,000 lb. | 85" | 78" | 36 | 6600 | |
| YRDS-20-8536-H | 20,000 lb. | 85" | 78" | 36 | 7325 |
| Uniform Capacity | 16,000 lb.; 20,000 lb.; 25,000 lb.; 30,000 lb. |
|---|---|
| Overall** Ramp Width | 72"; 84"; 73"; 85" |
| Usable Ramp Width | 66"; 78" |
| Length (Feet) | 30; 36 |
| Portable Steel Yard Ramps With Mechanical Edge-O-Dock Uniform Capacity | 16,000 lb.; 20,000 lb.; 25,000 lb.; 30,000 lb. |
| Overall Width | 72"; 84"; 73"; 85" |
Source: 2018 catalog, page 20. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The catalog lists YR-16-7230 through YRDS-20-8536-H within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Uniform Capacity: 16,000 lb.; 20,000 lb.; 25,000 lb.; 30,000 lb.; Overall** Ramp Width: 72"; 84"; 73"; 85". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 20. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 38 model references for this family. The first listed model is YR-16-7230. Compare the model rows and confirm the required configuration when quoting.
Plan the transfer path between a loading area and the vehicle or receiving surface. Match the model to the height difference, usable width and intended loading method.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
